MISSION RUBBER COMPANY CP200 Band-Seal Specialty Couplings 2 x 2 in

Product Description

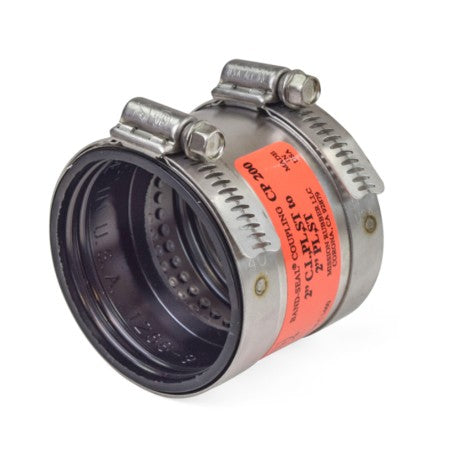

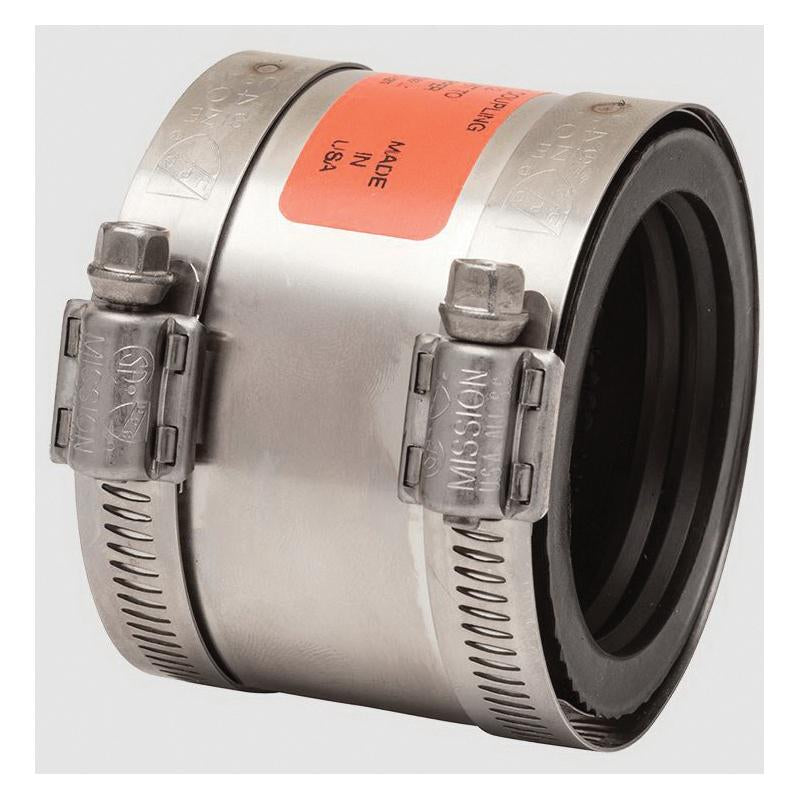

The MISSION RUBBER COMPANY CP200 Band-Seal Specialty Coupling connects two inch cast iron, plastic, or steel pipe. This coupling is crafted for non-pressure, gravity flow applications. It is recommended for above-ground installations and is designed for ease of installation and reuse. Stainless steel components ensure resistance to corrosion.

• Easy to install and reuse.
• Increased band tension for watertight seals.
• Corrosion-resistant stainless steel construction.

Product Highlights

The coupling connects cast iron, plastic, or steel pipes designed for non-pressure applications while providing ease of use and durability.

Product Information

Standard Information

• Brand: MISSION RUBBER COMPANY
• MPN: CP200

Technical Specifications

• Clamps: 301 Series Stainless Steel, Worm Drive (2 or 4)
• Shield: 300 Series Stainless Steel
• Gasket: Molded, One-Piece, Elastomeric Sealing Gasket
• Side A: 2 inch No-Hub Cast Iron/Extra-Heavy Cast Iron/Plastic/Steel pipe
• Side B: 2 inch No-Hub Cast Iron/Extra-Heavy Cast Iron/Plastic/Steel pipe
• Clamp material: 301 Stainless Steel
• Shield material: 300 Stainless Steel
• Usage: Non-pressure, gravity flow applications only
• Max. torque: 60 inch/lbs
• Meets: ASTM C 1460, ASTM C 564, ASTM A240/A240M and CSA B602
• Connection Type: Cast Iron, Plastic, Steel x Cast Iron, Plastic, Steel
• Dimensions: 9.38 inches L x 2.12 inches W
• Domestic/Import: Domestic
• Elongation: 250 %
• Fitting Size: 2 x 2 inches
• Material: Stainless Steel
• Series: CP Series
• Temperature Rating: 158 degrees F
• Tensile Strength: 1500 psi
• Torque Rating: 60 inch-lb
