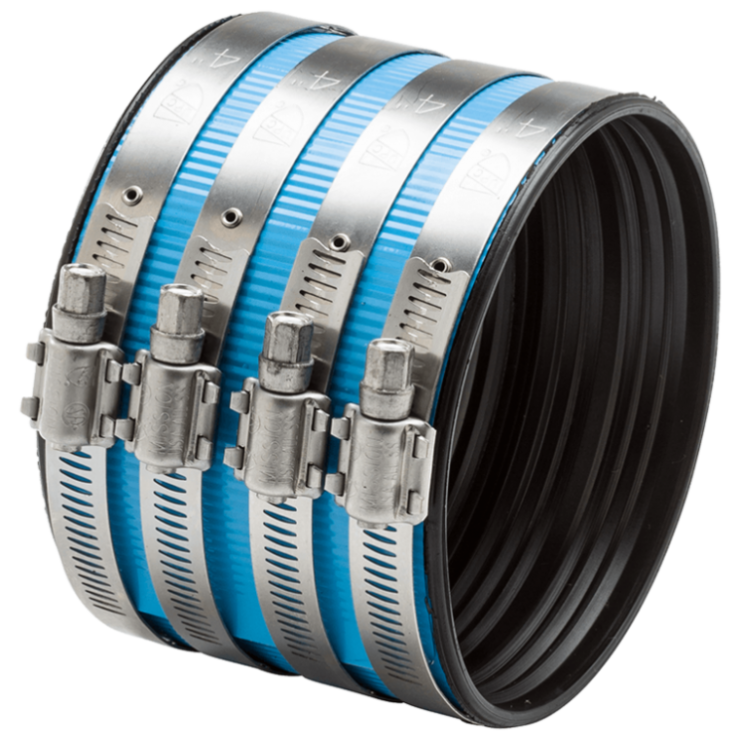

MISSION RUBBER COMPANY C800HW Heavy-Duty No Hub Coupling

Product Description

The Mission Rubber Company C800HW is a heavy-duty coupling made for connecting eight inch cast iron hubless soil pipes and fittings. This coupling works well in sanitary and drain, waste, and vent (DWV) applications that require non-pressure, gravity flow. It is suitable for both above and underground installations. The shield is constructed eight percent thicker than standard materials for improved durability. It is easy to install and can be reused.

• Connects eight inch cast iron hubless soil pipe and fittings.
• Features a heavy-duty 304 series stainless steel shield and clamps.
• Utilizes a molded, one-piece, elastomeric sealing gasket.

Product Highlights

Designed for reliable connections in various plumbing installations.

Product Information

Standard Information

• Brand: Mission Rubber Company
• MPN: C800HW

Technical Specifications

• Clamps: Heavy-Duty 304 Series Stainless Steel, Worm Drive (6)
• Shield: Heavy-Duty 304 Series Stainless Steel
• Gasket: Molded, one-piece, elastomeric sealing gasket
• Fitting Size: Eight inches
• Connection Type: Cast Iron
• Tensile Strength: 1500 psi
• Elongation: 250 percent
• Torque Rating: 80 in-lb
• Temperature Rating: 158 degrees Fahrenheit
• Material: Stainless Steel
• Material Standard: ASTM A240, A240M-06, C564-03, C1540-02
• Dimensions: Four inches high
• Domestic/Import: Domestic
• Suitable For Use With: Hubless Cast Iron Pipe Fittings
• Width: Four inches
