Mission Rubber Company C600HW Heavy-Duty No Hub Coupling

Product Description

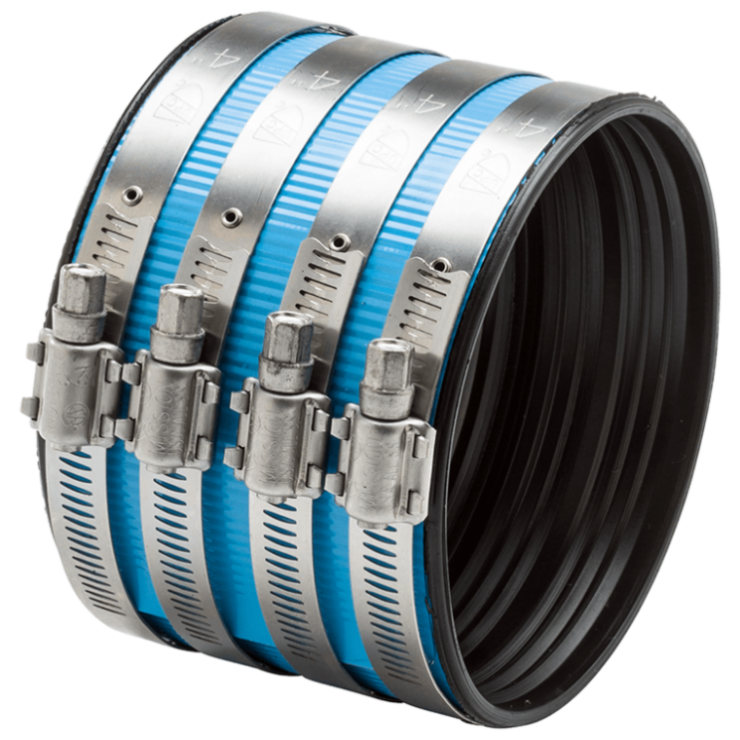

The Mission Rubber Company C600HW is designed to connect six inch cast iron hubless soil pipe and fittings. This heavy-duty coupling is suitable for sanitary, drain, waste, and vent (DWV) applications. It features a one-piece molded elastomeric sealing gasket and includes a heavy-duty 304 series stainless steel shield and clamps, making it durable and reliable for various applications.

• Connects six inch cast iron hubless soil pipe and fittings.
• Made with a heavy-duty stainless steel shield and clamps.
• Ideal for non-pressure, gravity flow DWV applications.

Product Highlights

The C600HW coupling is ideal for both above and underground installations, ensuring secure connections in a wide range of plumbing scenarios.

Product Information

Standard Information

• Manufacturer Part Number: C600HW
• Material: ASTM 304 Stainless Steel, Elastomeric

Technical Specifications

• Shield Material: Heavy-Duty 304 Series Stainless Steel
• Clamp Material: Heavy-Duty 304 Series Stainless Steel, Worm Drive
• Gasket: Molded, one-piece, elastomeric sealing gasket
• End Connection: No Hub x No Hub
• Connects: 6 inch CI to 6 inch CI
• Size A: 6 Inch
• Size B: 6 Inch
• Width: 4 inches
• Application: Sanitary, DWV
• Applicable Standards: NSF, IAPMO 7816, FM 1680 CLASS 1, CSA B602
