Mission Rubber Company C500HW Heavy Duty No Hub Coupling

Product Description

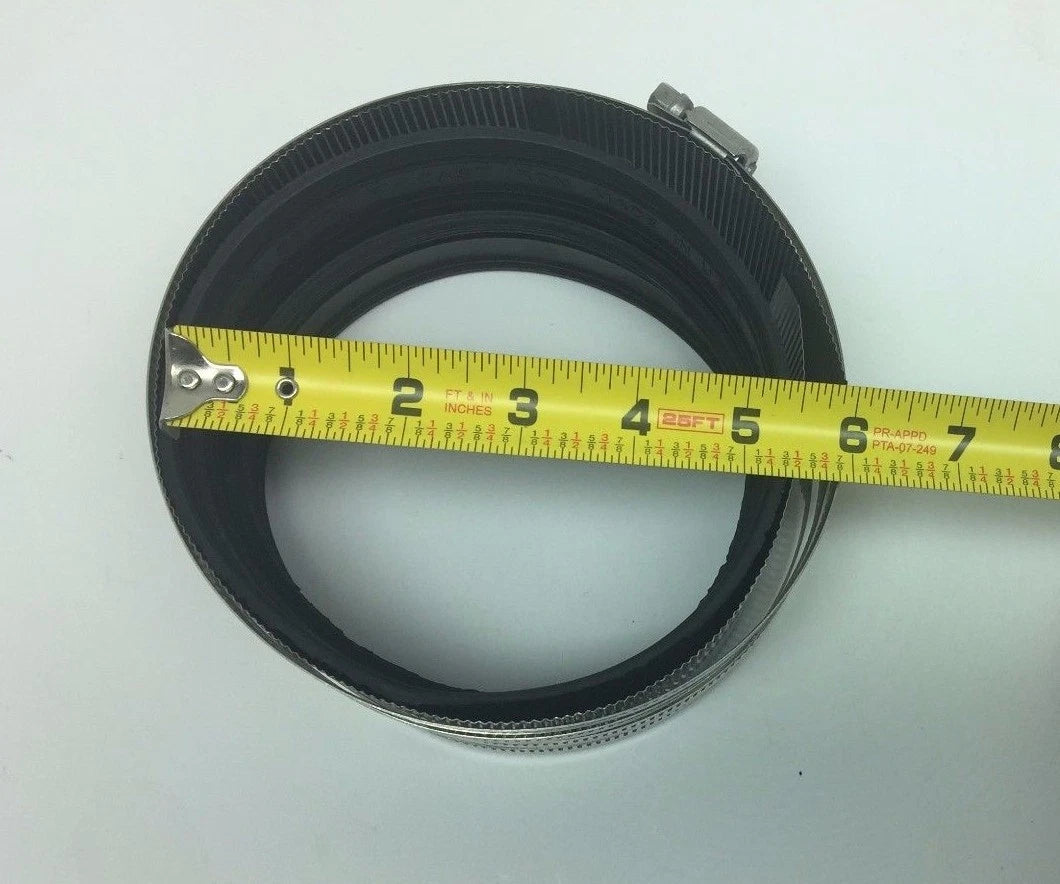

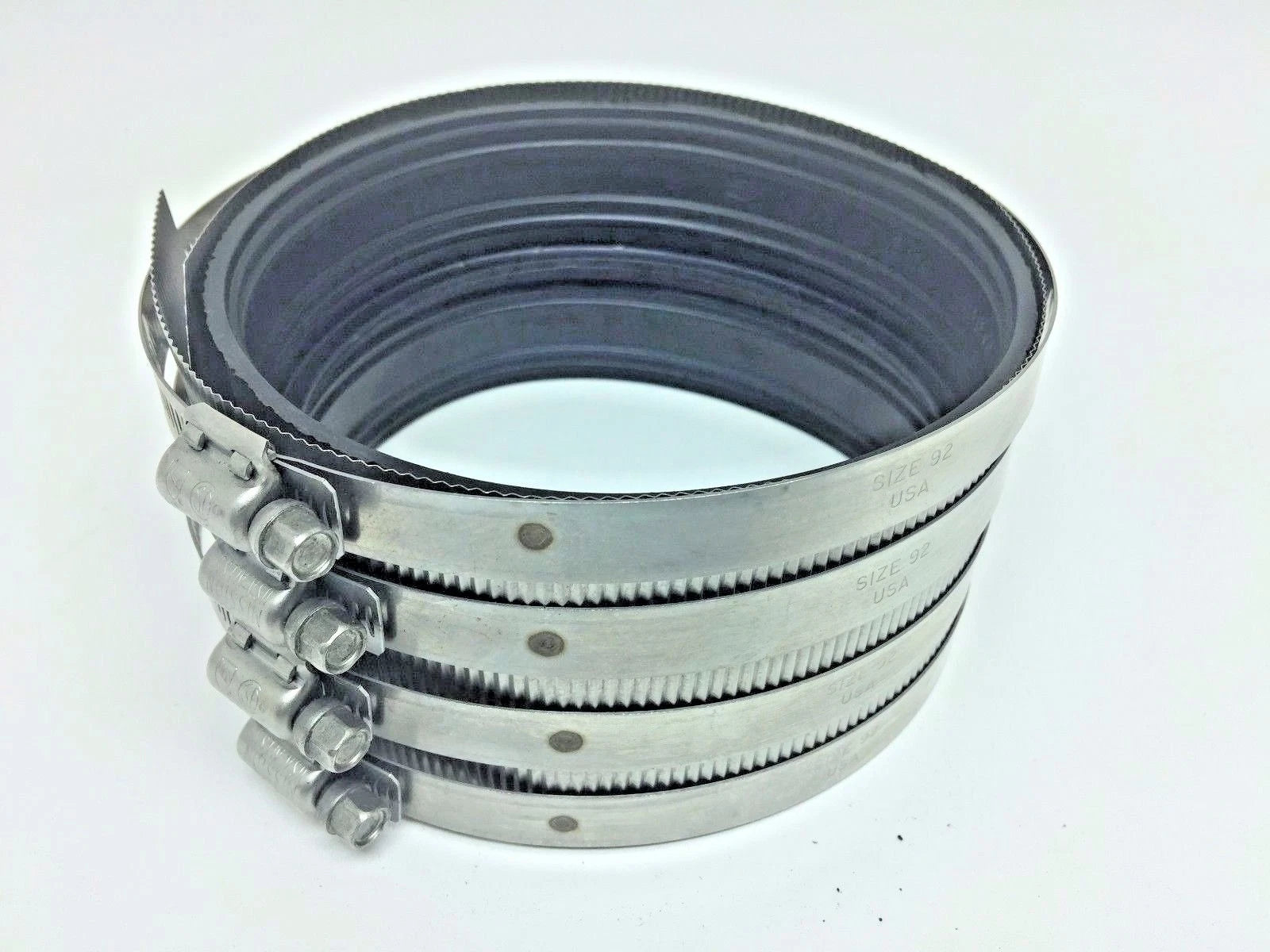

The Mission Rubber Company C500HW is designed for connecting five-inch cast iron hubless soil pipes and fittings. This heavy-duty coupling includes stainless steel bands and a molded elastomeric sealing gasket, making it ideal for sanitary and drain waste and vent (DWV) applications. It functions well in non-pressure, gravity flow systems and can be installed above or below ground.

• Connects five-inch cast iron hubless soil pipe and fittings.
• Features heavy-duty 304 series stainless steel shield and clamps.
• Suitable for non-pressure, gravity flow applications.

Product Highlights

This coupling supports reliable connections in various installations.

Product Information

Standard Information

• Brand: Mission Rubber Company
• MPN: C500HW

Technical Specifications

• Material: Stainless Steel, Rubber, Synthetic Rubber, Neoprene
• Shield Material: 304 Series Stainless Steel

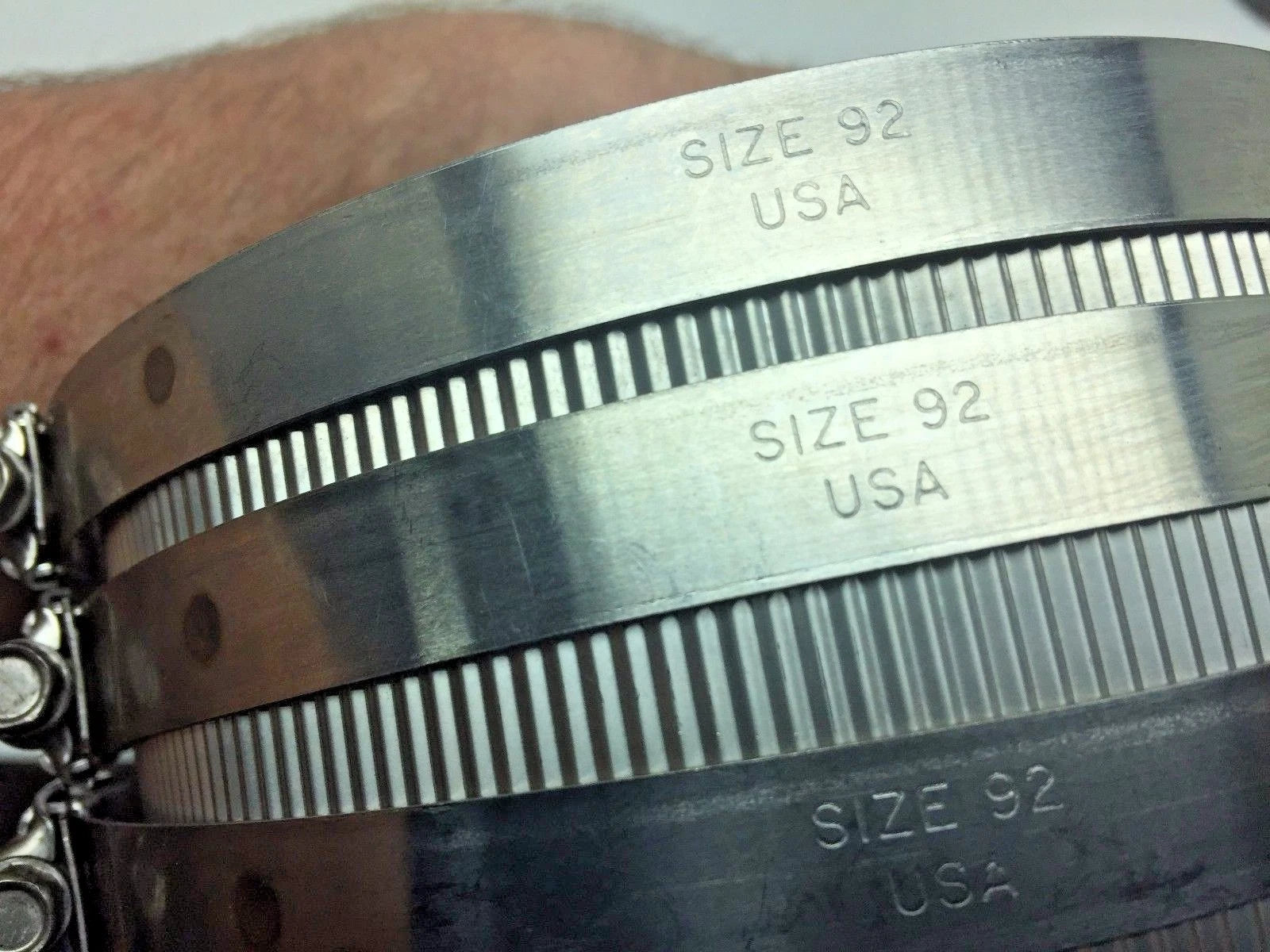

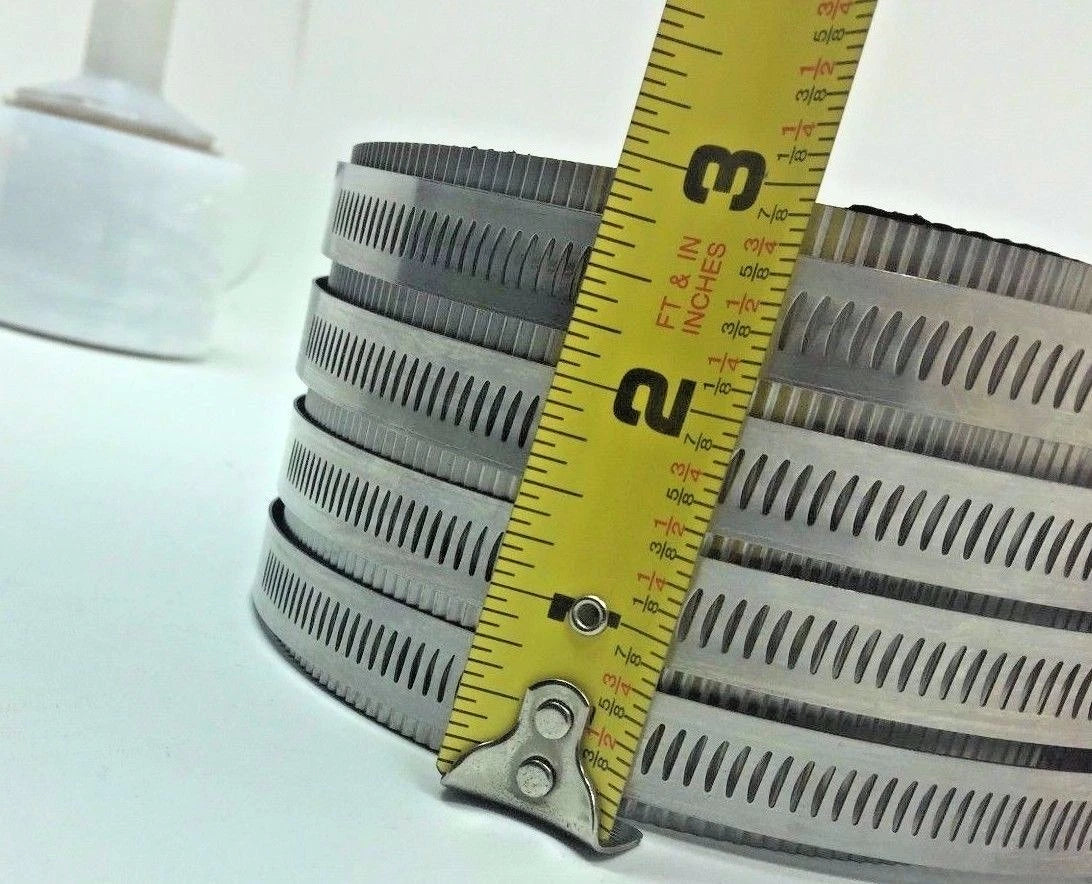

• Clamp Material: 304 Series Stainless Steel
• Screw Material: 305 Stainless Steel

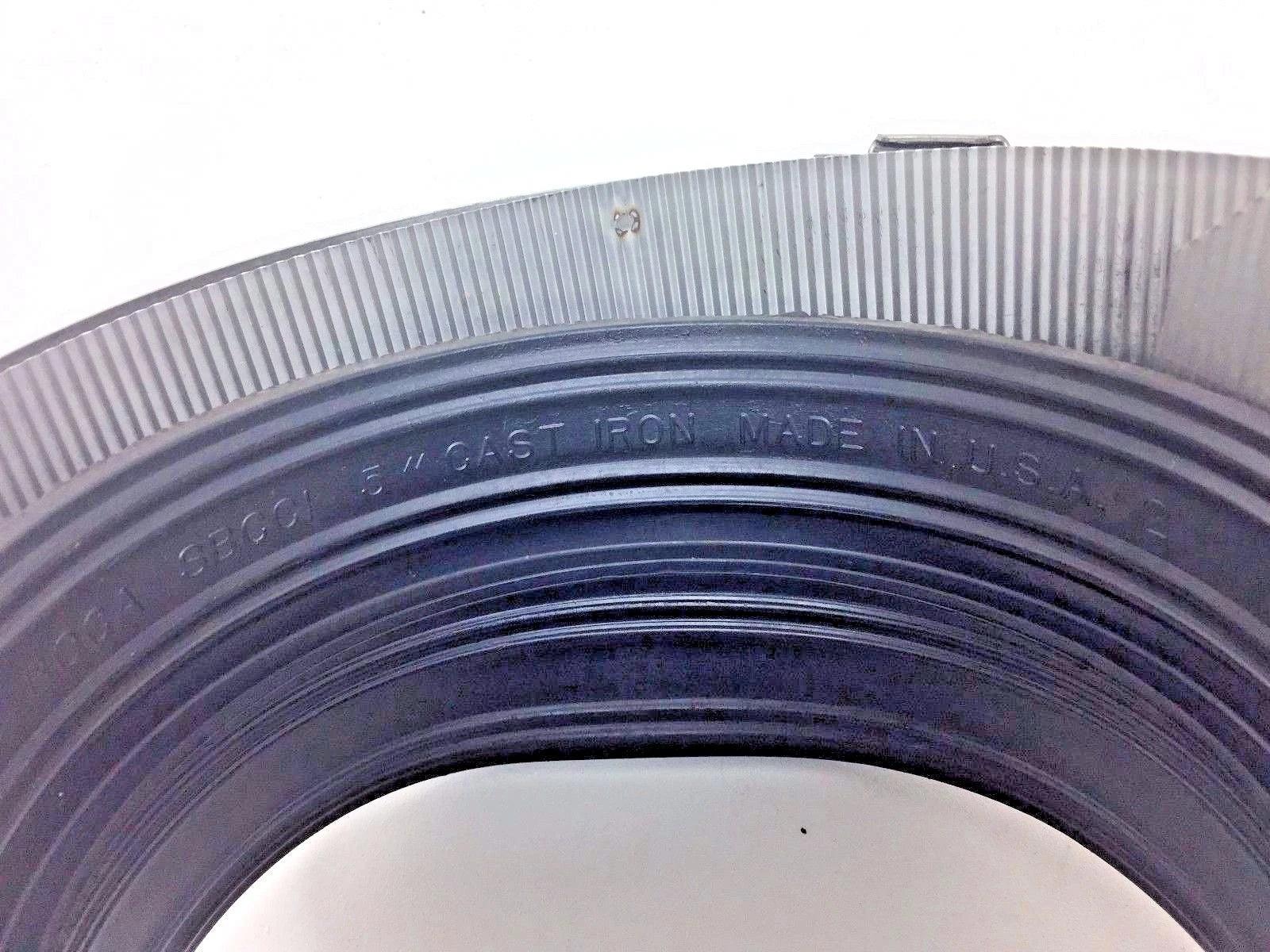

• Gasket Details: One-Piece, Molded, Elastomeric Sealing
• Application: Non-Pressure, Gravity Flow, Sanitary and DWV
• End Connection: No Hub Cast Iron x No Hub Cast Iron
• Fitting Size 1: Five inches
• Fitting Size 2: Five inches
• Fitting Type: Straight
• Applicable Standard: UPC, IAPMO 7816, FM 1680 CLASS 1, CSA B602
• Maximum Pressure: 1500 psi
• Connection: No-Hub, Clamp
• Gasket Supplied: Yes
