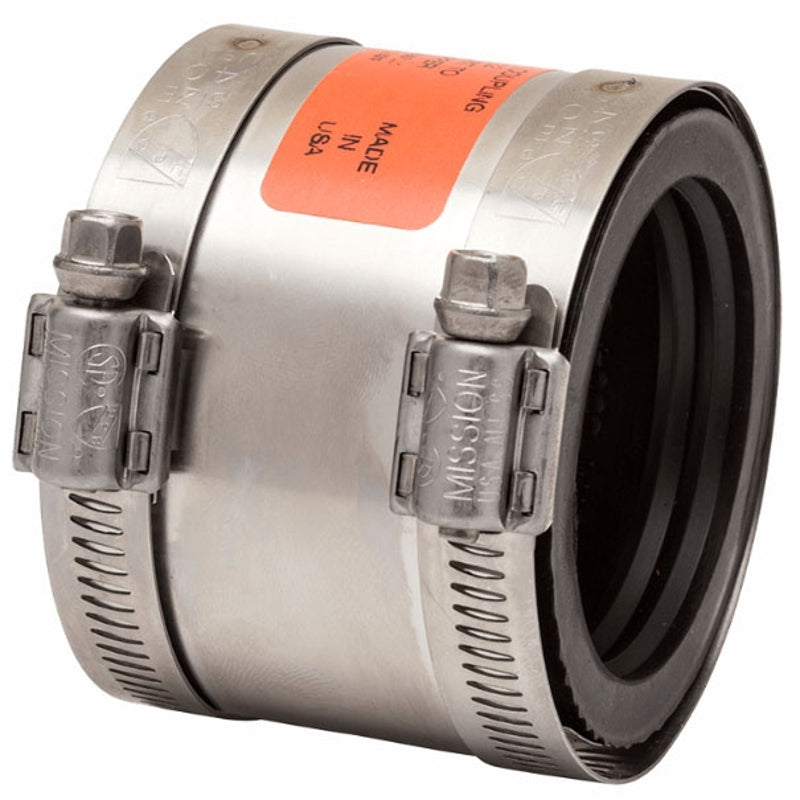

Mission Rubber Company C1000HW Heavy-Duty No Hub Coupling

Product Description

The Mission Rubber Company C1000HW is a heavy-duty no hub coupling. This coupling connects ten-inch cast iron hubless soil pipes and fittings. It is suitable for municipal storm, sanitary sewer systems, and drainage applications. The installation can be done above or below ground. This coupling features a stainless steel shield with an elastomeric sealing gasket.

• Connects ten-inch no hub cast iron to ten-inch no hub cast iron.
• Stainless steel shield enhances durability.
• Designed for non-pressure, gravity flow applications.

Product Highlights

This coupling ensures a reliable connection in gravity flow settings.

Product Information

Standard Information

• Brand: Mission Rubber Company
• MPN: C1000HW

Technical Specifications

• Material: 304 Stainless Steel (Band/Screw Housing/Screw Saddle/Shield), 305 Stainless Steel (Screw)
• Size A: ten inches
• Size B: ten inches
• Application: Non-pressure, gravity flow, sanitary and DWV, residential
• End Connection: No hub cast iron x no hub cast iron
• Gasket Details: One-piece, molded, elastomeric sealing
• Number of Bands: six
• Tensile Strength: 1500 PSI
• ASTM: ASTM A-240, ASTM C-1540 2002, ASTM C-564 2003
• CSA Certified: CSA 7021 2002
• IAPMO Listed: Yes
