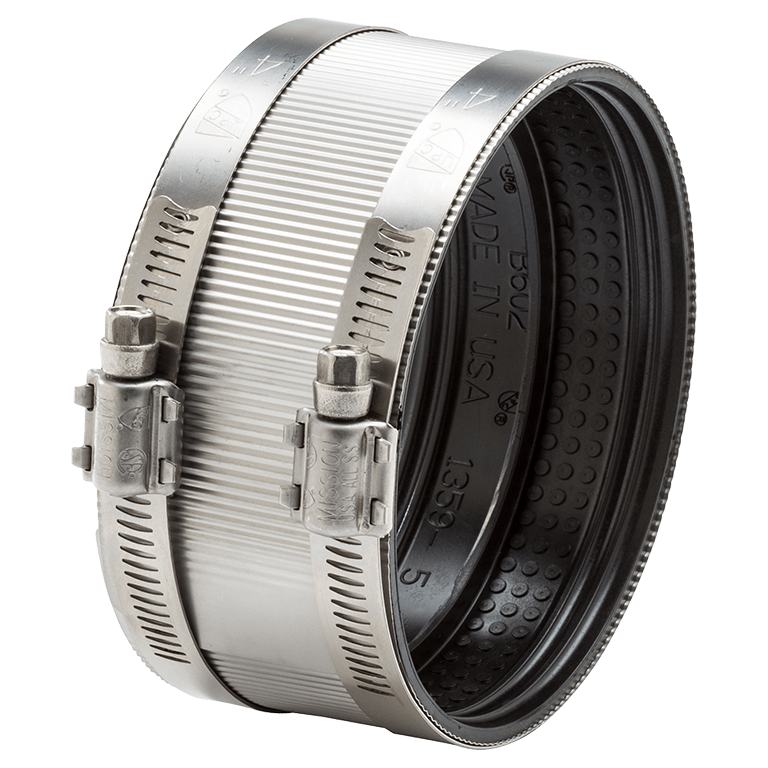

MISSION RUBBER COMPANY C1000C No-Hub Coupling 10 in Replacement MPN

Product Description

The MISSION RUBBER COMPANY C1000C is a no-hub coupling designed to connect cast iron hubless soil pipes and fittings. This coupling is ideal for sanitary, drain, waste, and vent (DWV) applications within non-pressure, gravity flow systems. It can be used for both above and underground installations.

• Connects cast iron hubless soil pipe and fittings
• Suitable for non-pressure, gravity flow applications
• Features stainless steel shield and elastomeric gasket

Product Highlights

This coupling guarantees a secure connection with reliable sealing, making it a vital component for plumbing systems.

Product Information

Standard Information

• MPN: C1000C
• Nominal Pipe Size: 10 inches

Technical Specifications

• Connection Size 1: 10 in
• Fitting Type: Coupling
• Connection Type: No-Hub
• Body Material: ASTM A240 Stainless Steel (Shield/Clamp)
• Shield Material: 301 Series Stainless Steel
• Clamp Material: 301 Series Stainless Steel
• Gasket Material: ASTM C564 Neoprene Rubber
• Number of Bolts: 2
• Bolt Size: 5/16 Inch
• Length: 4 inches
• Dimensions: 36-1/4 in L x 4 in W
• Applicable Standards: UPC, ASTM C1277, CLSPL 310
