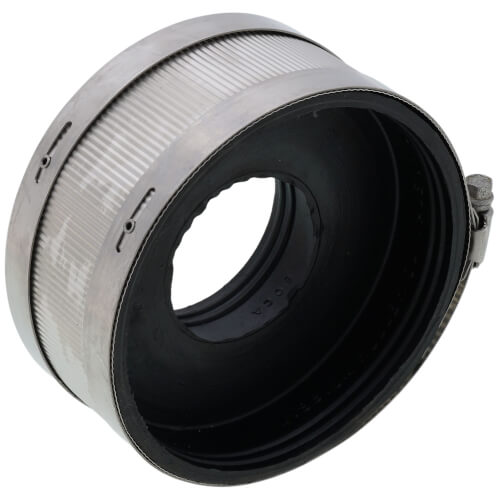

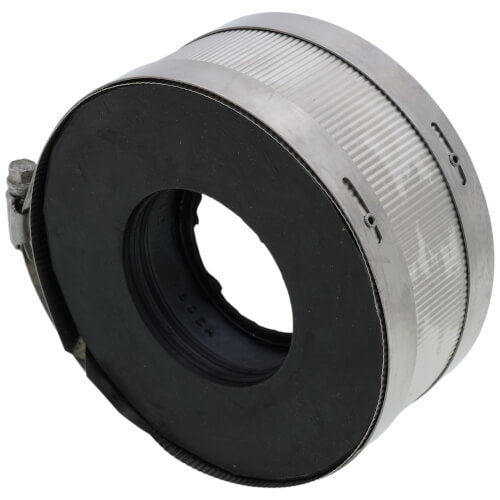

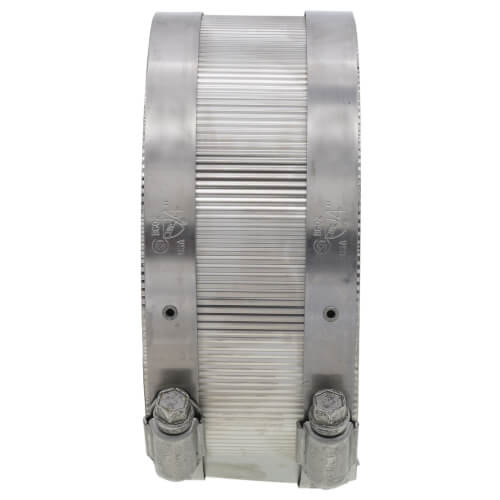

Mission Rubber C420C No Hub Coupling 4 inches x 2 inches

Product Description

The Mission Rubber C420C coupling connects pipes of different materials, providing a strong and reliable seal. It features a full stainless steel band around the rubber, enhancing its strength and sealing ability. Connects Cast Iron hubless soil pipe and fittings in sanitary and drain waste and vent (DWV) applications.

• Easy to install and reuse.
• Increased band tension secures pipe ends, forming a watertight, root-proof seal.
• Stainless steel components resist corrosion in marine applications, poorly aerated/moist soils, and contaminated grounds conditions.

Product Highlights

The Mission Rubber coupling is designed for non-pressure, gravity flow applications and is recommended for above and underground installations. Internal pipe stop reduces noise and vibration.

Product Information

Standard Information

• Brand: MISSION RUBBER
• Manufacturer Part Number: C420C

Technical Specifications

• Size: 4" x 2"
• Application: Cast Iron Pipes/Fittings
• Clamps: 301 Series Stainless Steel, Worm Drive (2 or 4)
• Shield: 301 Series Stainless Steel
• Gasket: Molded, one-piece, elastomeric sealing gasket
• Body Material: ASTM A240 Stainless Steel (Shield/Clamp)
• Bolt Size: 5/16 Inch
• Clamp Range: 4 Inch
• Gasket Material: ASTM C564 Neoprene Rubber
• Length: 2.125 Inch
• Nominal Pipe Size: 4 Inch x 2 Inch
• Number of Bolts: 2
• Type: 2-Band, Cast Iron to Cast Iron, No Hub
• Vendor Description: MISSION C420C 4X2 NO HUB CPLG
• VENDOR Product No: C420C
