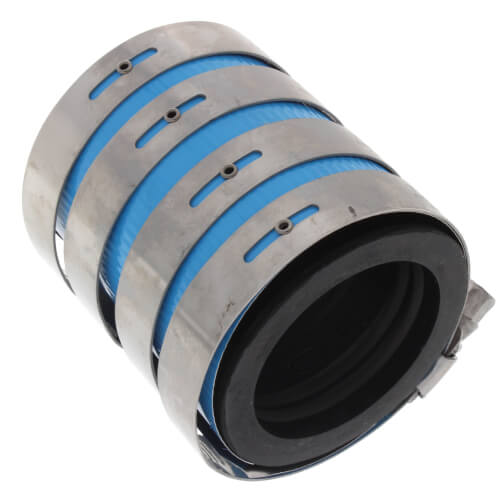

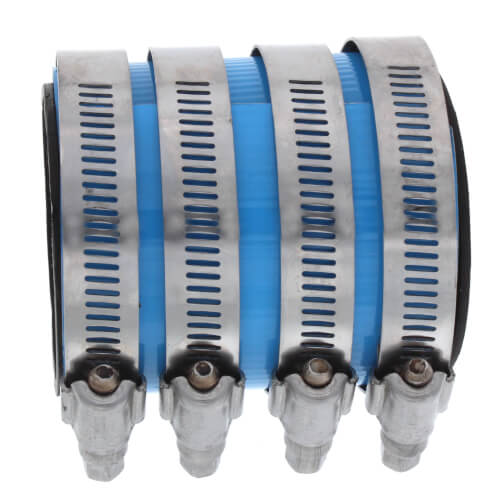

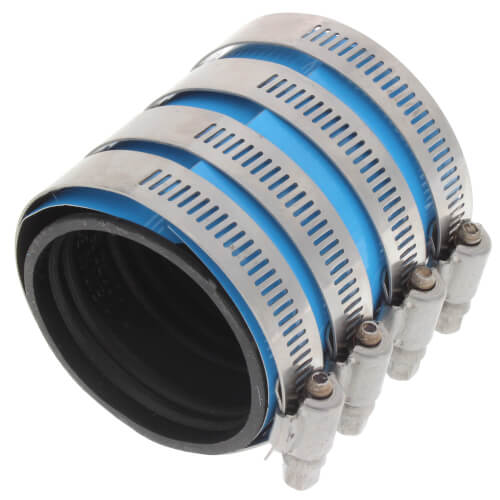

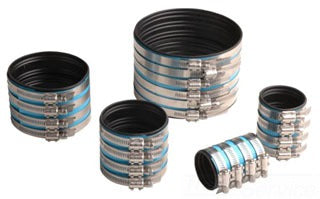

Mission Rubber C215-HW Heavy-Duty No Hub Coupling

Product Description

The Mission Rubber C215-HW is a heavy-duty coupling for connecting cast iron hubless soil pipes and fittings. It is suitable for sanitary, drain, waste, and vent applications in non-pressure, gravity flow systems. This coupling works well for both above and underground tasks.

• Connects two-inch to one-and-a-half-inch cast iron hubless pipes.
• Molded one-piece elastomeric sealing gasket included.
• Heavy-duty shield and clamps made from 304 series stainless steel.

Product Highlights

This coupling ensures a secure connection in various plumbing applications.

Product Information

Standard Information

• UPC: 016846911110
• GTIN: 016846911110

Technical Specifications

• Clamps: Heavy-Duty 304 Series Stainless Steel, Worm Drive (4)
• Shield: Heavy-Duty 304 Series Stainless Steel
• Gasket: Molded, one-piece, elastomeric sealing gasket
• End Connection: No Hub Cast Iron x No Hub Cast Iron
• Application: Non-Pressure, Gravity Flow, Sanitary and DWV
• Material: 304 Stainless Steel (Band/Screw Housing/Screw Saddle/Shield), 305 Stainless Steel (Screw)
• Material Specification: ASTM A240/C564/C1540/A240M
• Size A: 2 Inch
• Size B: 1-1/2 Inch
• Type: Underground Shielded, Heavyweight, Heavy Duty, Reducing
• Width: 3 Inch
• Number of Bands: 4
• Applicable Standard: UPC, IAPMO 7816, FM 1680 CLASS 1, CSA B602
• Gasket Supplied: Yes
