Mission Rubber BWT150 Band-Seal Specialty Couplings 1-1/2 in BWT 150

Product Description

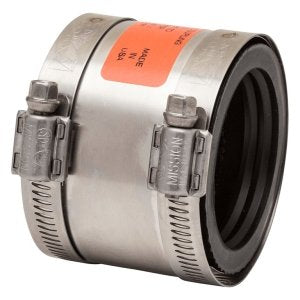

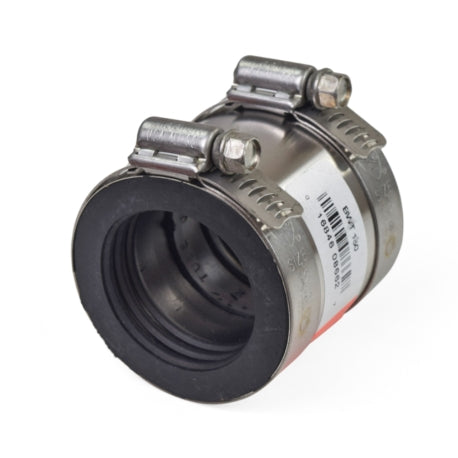

The Mission Rubber BWT150 Band-Seal® specialty coupling connects 1 1/2" tubular pipes. Designed for non-pressure, gravity flow applications, it's recommended for above-ground installations. Features include stainless steel clamps and shield, along with a molded, one-piece, elastomeric sealing gasket. Easy to install and reuse.

• Easy to install and reuse.
• Increased band tension secures pipe end, forming a watertight seal.
• Stainless steel components resist corrosion in various environments.

Product Highlights

The Mission Rubber BWT150 coupling provides a leak-proof, corrosion-resistant, and durable solution for connecting tubular pipes.

Product Information

Standard Information

• Brand: MISSION RUBBER
• Manufacturer Part Number: BWT150
• Country of Origin: USA

Technical Specifications

• RECOMMENDED TOOLS: Seekonk Torque Wrench - Pre-Set 60 in/lbs. with 5/16" hex head screw
• ASTM A240/A240M-06: View
• ASTM C564-03: View
• ASTM C1460-00: View
• CSA CLASS 7021-02 (B602): View
• IAPMO FILE 11464 LISTED: View
• Side A: 1-1/2" Tubular
• Side B: 1-1/2" Tubular
• Clamp material: 301 Stainless Steel
• Shield material: 300 Stainless Steel
• Max. torque: 60 inch/lbs
• Meets ASTM: C 1460, ASTM C 564, ASTM A240/A240M and CSA B602
• Type: Coupling
• Nominal Size: 1-1/2 in
• Connection Type: Tubular x Tubular
• Material: Rubber
• Series: BWT
• Domestic/Import: Domestic
• End Style: Tube
• Fitting/Connector Type: Coupling
• Brand: Mission
• UNSPSC: 40172600
• Alternate Part Number 1: BWT 150
