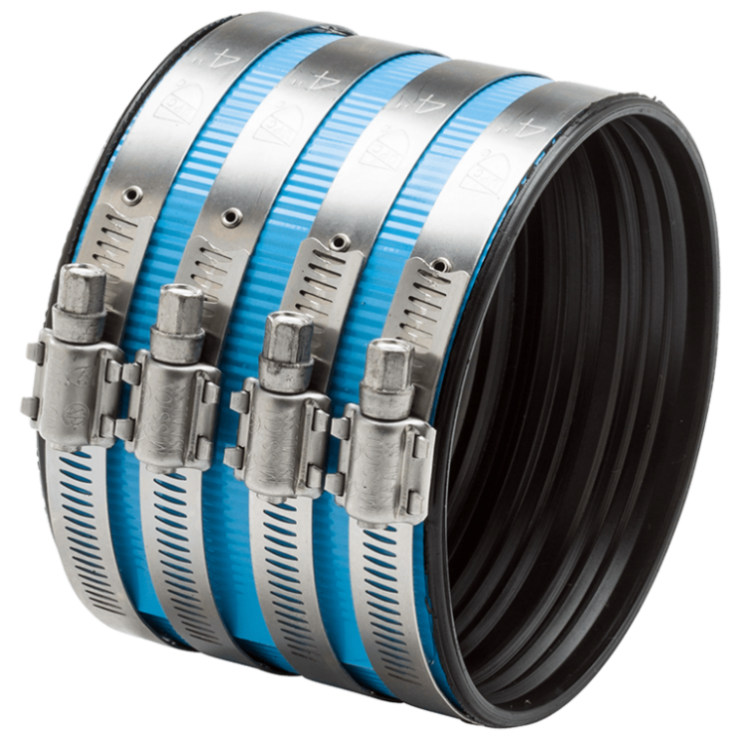

Mission Rubber 1906114 6 x 6 No Hub x No Hub Cast Iron to Cast Iron Coupling

Product Description

The Mission Rubber 1906114 is a six-inch coupling designed for connecting cast iron hubless soil pipes in sanitary and drain waste vent (DWV) applications. This heavy-duty coupling features a 304 stainless steel shield and a one-piece synthetic rubber gasket, ensuring reliable performance in non-pressure gravity flow applications. It is suitable for both above and underground installations and is easy to install and reuse.

• Six-inch cast iron coupling for hubless pipe connections
• Constructed with heavy-duty 304 stainless steel for durability
• Includes a synthetic rubber gasket for secure sealing

Product Highlights

This coupling is designed to provide effective connections between cast iron fittings, ensuring durability and reliability in various installations.

Product Information

Standard Information

• Brand: Mission Rubber Co Inc TCG
• Part Number: MISS-C600HW

Technical Specifications

• Size: 6 to 6 inches
• Type: Cast Iron to Cast Iron/Plastic/Steel
• Material: 304 Stainless Steel
• Shield Thickness: 8% thicker than standard shields
• Clamp Type: Worm Drive (6)
• Gasket Type: Molded, one-piece elastomeric
