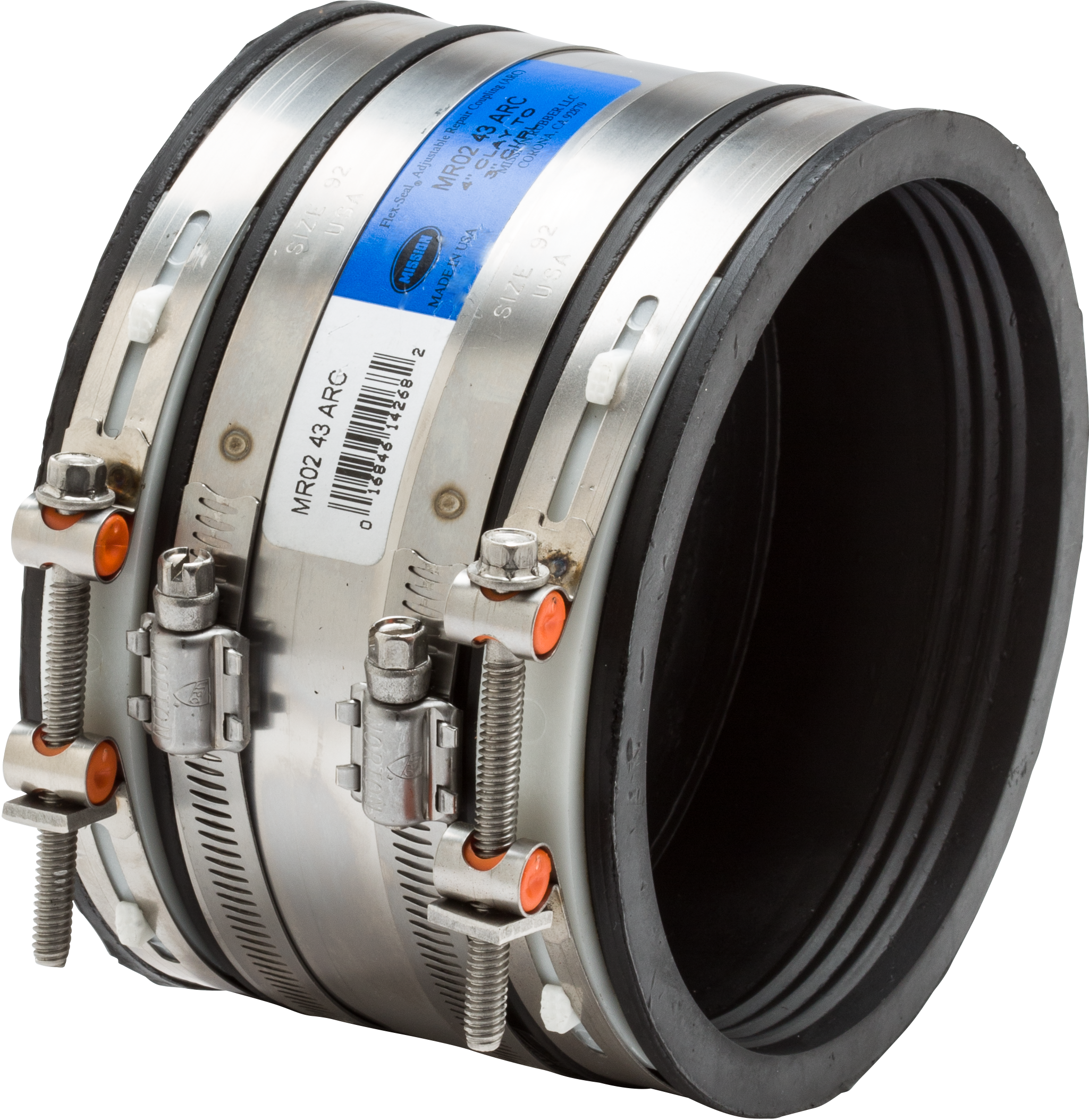

Mission Rubber 1410026 Flex-Seal Arc Shielded Adjustable Sewer Repair Couplings

Product Description

The Mission Rubber 1410026 Flex-Seal Arc Shielded Adjustable Sewer Repair Couplings are designed to connect ten inch cast iron or plastic pipe to another ten inch cast iron or plastic pipe. These couplings are made for non-pressure, gravity flow applications and recommended for underground use. Installation is simplified, and the product can be reused.

• Simple to install and reusable
• Enhanced band tension creates a watertight seal, preventing infiltration and exfiltration
• Thick stainless steel shield provides load control and maintains pipe alignment

Product Highlights

This coupling is ideal for plumbers and trade professionals needing reliable sewer line repairs.

Product Information

Standard Information

• Part: 1410026
• Brand: Mission Rubber

Technical Specifications

• Connects: 10 inch CI, PL to 10 inch CI, PL
• A-MIN: 10.2 inches
• A-MAX: 10.8 inches
• B-MIN: 10.2 inches
• B-MAX: 10.8 inches
• C-WIDTH: 6.5 inches
• Description: 10 inch CI/PL to 10 inch CI/PL
• Case Qty.: 8
• Clamps: Surgical grade 316 stainless steel, nut and bolt (2 or 4)
• Shield: 301 series stainless steel with worm drive clamps (2)
• Gasket: Molded one-piece elastomeric sealing gasket
• Recommended Tools: Seekonk torque wrench - pre-set 60 in/lbs. with 5/16 hex head screw
• Type: Adjustable shielded
• Fitting/Connector Type: Coupling
• Nominal Size: 10 inches
• Series: MR56 ARC
• End Style: Cast Iron/Plastic
