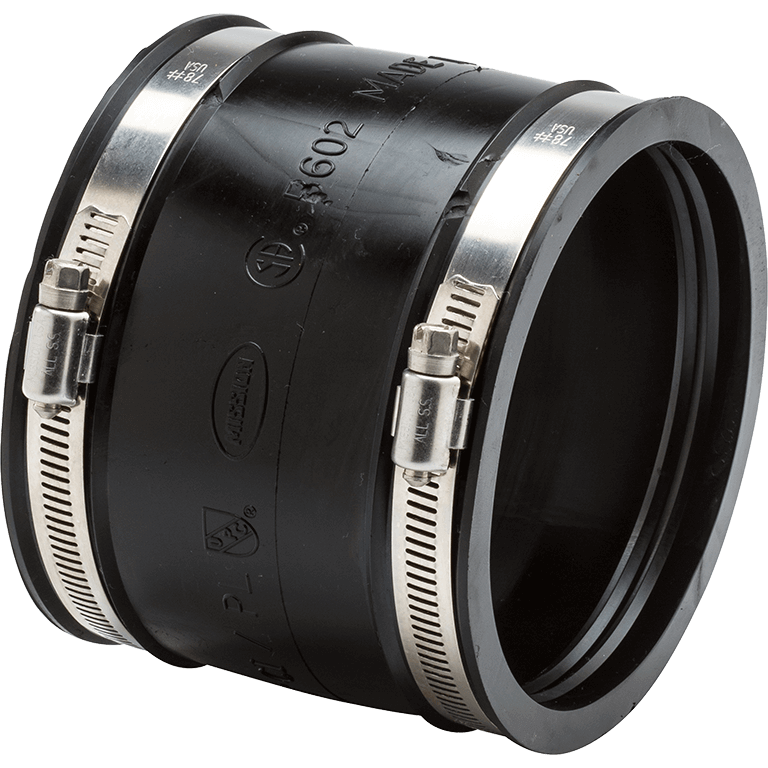

Mission Rubber 1401020 Mirror Rubber Unshielded Sewer Couplings

Product Description

The MISSION RUBBER 1401020 Mirror Rubber Unshielded Sewer Couplings connect 1" Cast Iron or Plastic pipe. These flexible, unshielded sewer couplings are for non-pressure, gravity flow applications only. They are recommended for underground installations and are easy to install and reuse. Custom, large diameter sizes are available.

• Connects 1" Cast Iron or Plastic pipe to 1" Cast Iron or Plastic pipe
• Recommended for underground installations
• Easy to install and reuse

Product Highlights

Flexible, unshielded sewer couplings for connecting 1" Cast Iron or Plastic pipe in non-pressure, gravity flow applications. Easy to install and reuse.

Product Information

Standard Information

• Brand: MISSION RUBBER
• Manufacturer Part Number: 1401020

Technical Specifications

• MPN: 1401020
• Brand: MISSION RUBBER
• Category: Coupling
• Clamps: 300 Series Stainless Steel, Worm Drive (2)
• Gasket: Molded, one-piece, elastomeric sealing gasket
• Connects: 1" CI, PL to 1" CI, PL
• A-MIN (IN): 1.25
• A-MAX (IN): 1.4
• B-MIN (IN): 1.25
• B-MAX (IN): 1.4
• C-WIDTH (IN): 2
• Domestic/Import: Domestic
• End Style: Cast Iron/Plastic x Cast Iron/Plastic
• Fitting/Connector Type: Coupling
• Nominal Size: 1 in
• Series: MR56
