MISCELLANEOUS PRODUCT VS2EX

Product Description

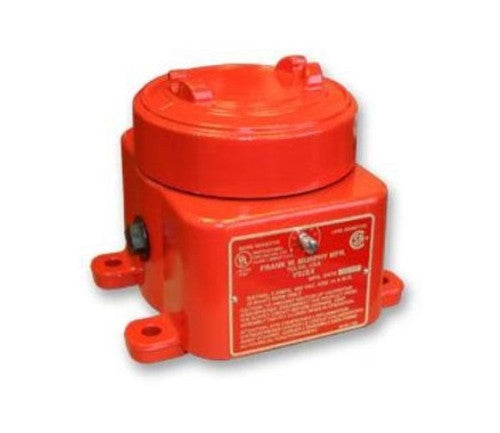

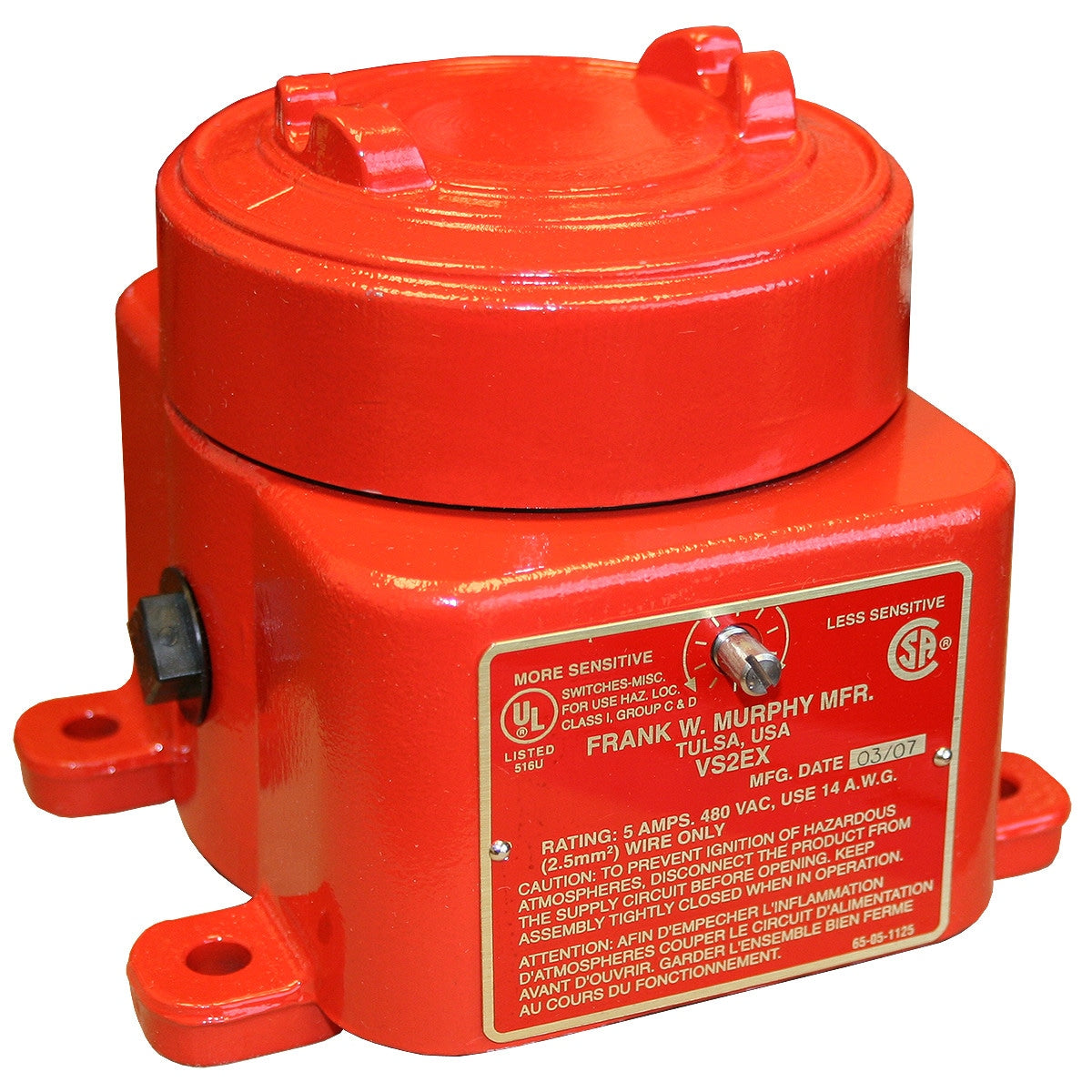

The MISCELLANEOUS PRODUCT VS2EX is a shock and vibration switch that ensures equipment shutdown. This device employs a shock-sensitive mechanism with a magnetic latch, enabling precise operation. The switch is enclosed in an explosion-proof aluminum alloy for durability. It features externally adjustable sensitivity for varied operational needs. When activated, the unit provides a Tattletale indication on the reset button, giving immediate feedback.

• Detects shock and vibration in three planes of motion.
• Features a magnetic latch for reliable operation.
• Equipped with 2-SPDT snap-switches for effective control.

Product Highlights

This vibration switch is designed for critical applications in hazardous environments, providing both safety and functionality.

Product Information

Standard Information

• Manufacturer Part Number: VS2EX
• Enclosure Rating: NEMA 7/IP54

Technical Specifications

• Case: Base mount, explosion-proof aluminum alloy housing
• Hazardous Location Rating: Class I, Division 1, Groups C & D
• Electrical Contact Rating: 5 A @ 125-480 VAC, 1/2 A @ 125 VDC, 1/4 A @ 250 VDC, 2 A Resistive 30 VDC, 1 A Inductive 30 VDC
• Operating Temperature: -40 to 185°F (-40 to 85°C)
• Shipping Weight: 4 lb 8 oz. (2 kg)
• Shipping Dimensions: 8-1/4 x 9-1/4 x 5 in. (210 x 235 x 127 mm)
• Certifications: UL, CSA Canada and US
• Voltage Rating: 480 VAC
