MISCELLANEOUS PRODUCT STB75L Liquidtight Conduit Connector

Product Description

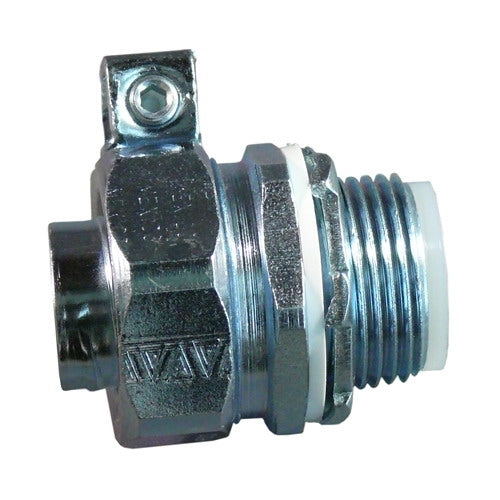

The MISCELLANEOUS PRODUCT STB75L is a robust insulated straight liquidtight conduit connector by Appleton. This connector features a threaded connection on one end and a compression connection on the other. Designed from steel with a zinc electroplated finish, it is built to withstand outdoor conditions. The insulated throat protects wires from damage, making it suitable for various applications.

• Insulated throat to protect against wire damage.
• Includes external grounding lug for additional safety.
• Designed for use with liquidtight flexible metal conduit.

Product Highlights

This conduit connector is ideal for outdoor electrical installations, ensuring secure connections without compromising safety.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer Part Number: STB75L

Technical Specifications

• Trade Size: three fourths inch
• Type: Insulated Straight
• Material: Steel
• Finish: Zinc Electroplated
• Connection: Threaded X Compression
• Application: For Liquidtight Flexible Metal Conduit
• Standards: Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• Conductor Range: 14 - 4 AWG
• Length: 7.70 inches
• Width: 4.30 inches
• Height: 0.16 inches
