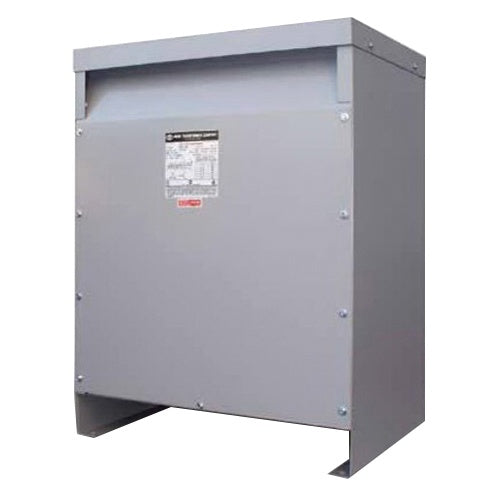

MISCELLANEOUS PRODUCT HS50C3B2-D16 Ventilated General Purpose Dry Type Distribution Transformer

Product Description

The MISCELLANEOUS PRODUCT HS50C3B2-D16 is a one-phase ventilated general-purpose dry type distribution transformer. This transformer has primary voltage ratings of 240/480 volts and secondary voltage ratings of 120/240 volts. With a frequency rating of 60 Hz and a power rating of 50 KVA, it is suitable for various applications.

• Features high and low voltage lead wire terminal connections.
• Designed for both indoor and outdoor use.
• Complies with UL, CSA, DOE 2016, ANSI C57.12.01, and ISO 9001:2008 standards.

Product Highlights

This transformer utilizes aluminum winding and is electrostatically shielded, ensuring efficiency and safety in operation.

Product Information

Standard Information

• Manufacturer: MGM Transformer Company
• MPN: HS50C3B2-D16

Technical Specifications

• Primary Voltage: 240/480 Volts
• Secondary Voltage: 120/240 Volts
• Temperature Rating: 150 degrees C Rise
• Power Rating: 50 KVA
• Dimensions: 26.5 inches Width x 17 inches Depth x 32 inches Height
• Color/Finish: ANSI 61 Light Gray
• Efficiency: 98.3%
• Phase: 1
• Mounting: Front and Rear Panel
• NEMA Rating: NEMA 2
