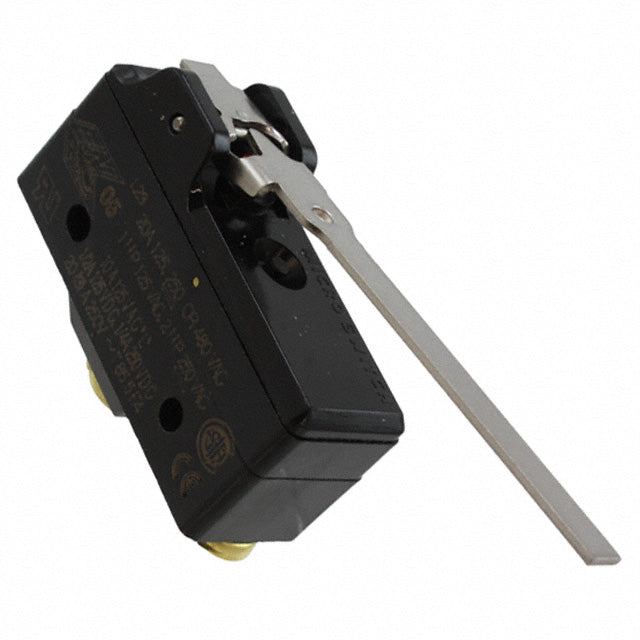

MISCELLANEOUS PRODUCT BA-2RV-A4 Switch 20A 125V AC 500mA 125V DC

Product Description

The MISCELLANEOUS PRODUCT BA-2RV-A4 is a reliable snap action switch featuring a single pole double throw (SPDT) circuit. This switch is specifically designed for chassis mounting, providing ease of installation and operation. It incorporates a straight lever actuator to ensure smooth functionality. Rated for 20 amperes at 125 volts AC and 500 milliamperes at 125 volts DC, it is suitable for various applications in commercial and residential settings.

• Snap action switch with SPDT circuit.
• Straight lever actuator for straightforward operation.
• Rated for 20A at 125V AC and 500mA at 125V DC.

Product Highlights

This switch operates efficiently within a temperature range of negative fifty-five degrees Celsius to eighty-five degrees Celsius. It is widely used in devices that require reliable on-moment activation.

Product Information

Standard Information

• Manufacturer Part Number: BA-2RV-A4
• Category: Switches

Technical Specifications

• Voltage Rating - DC: 125V
• Voltage Rating - AC: 125V
• Termination Style: Screw Terminal
• Switch Function: On-Mom
• Series: BA
• Release Force: 15gf
• Pretravel: 0.630 inches (16.0mm)
• Packaging: Bulk
• Overtravel: 0.077 inches (1.96mm)
• Operating Temperature: -55°C ~ 85°C
• Operating Position: 0.750 inches (19.1mm)
• Operating Force: 71gf
• Mounting Type: Chassis Mount
• Mechanical Life: 20,000,000 Cycles
• Current Rating: 20A (AC), 500mA (DC)
• Circuit: SPDT
• Actuator Type: Lever, Straight
