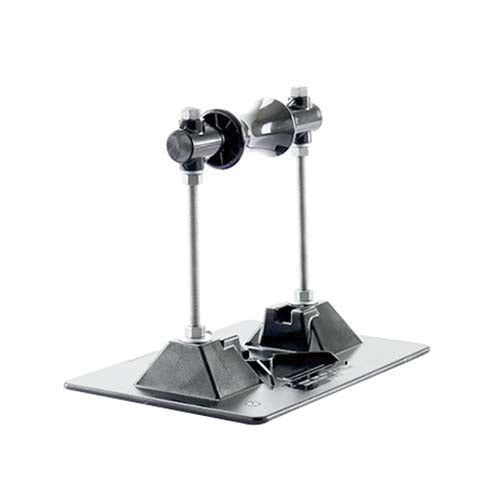

Miro 3-RAH-8 Hot Dipped Galvanized Polycarbonate Roller Bearing Pipe Support 7-1/2 in

Product Description

The Miro 3-RAH-8 is a roller-bearing pipe support designed for various applications, including the support of roof-mounted gas pipes, electrical conduits, and solar piping. This product effectively absorbs thermal expansion and contraction, preventing damage to the roof membrane. The design features a self-lubricating polycarbonate resin roller rod along with a polycarbonate resin base. It accommodates pipes up to three and three-quarter inches in outside diameter.

• Supports up to 172 pounds
• Minimum height of three and seven-eighths inches and maximum height of eight inches
• Recommended spacing not to exceed ten feet centers

Product Highlights

The Miro 3-RAH-8 is engineered for durability and efficiency in mechanical piping support applications.

Product Information

Standard Information

• Brand: Miro
• Manufacturer: Miro Industries

Technical Specifications

• Finish: Hot Dipped Galvanized
• Material: Polycarbonate
• Item Name: Roller Bearing Pipe Support
• Nominal Size: 7-1/2 in
• Load Capacity: 172 lb
• Pipe Outside Diameter: 3-3/4 in
