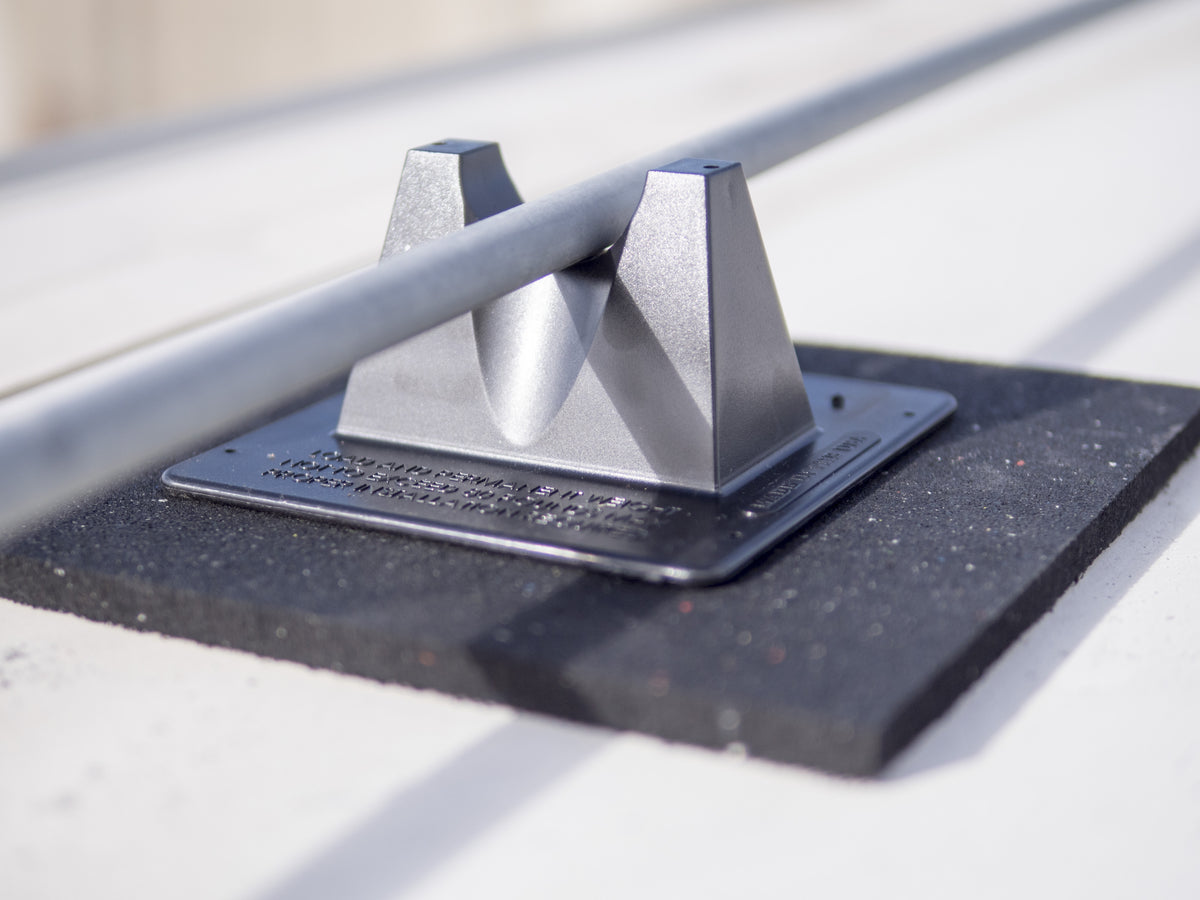

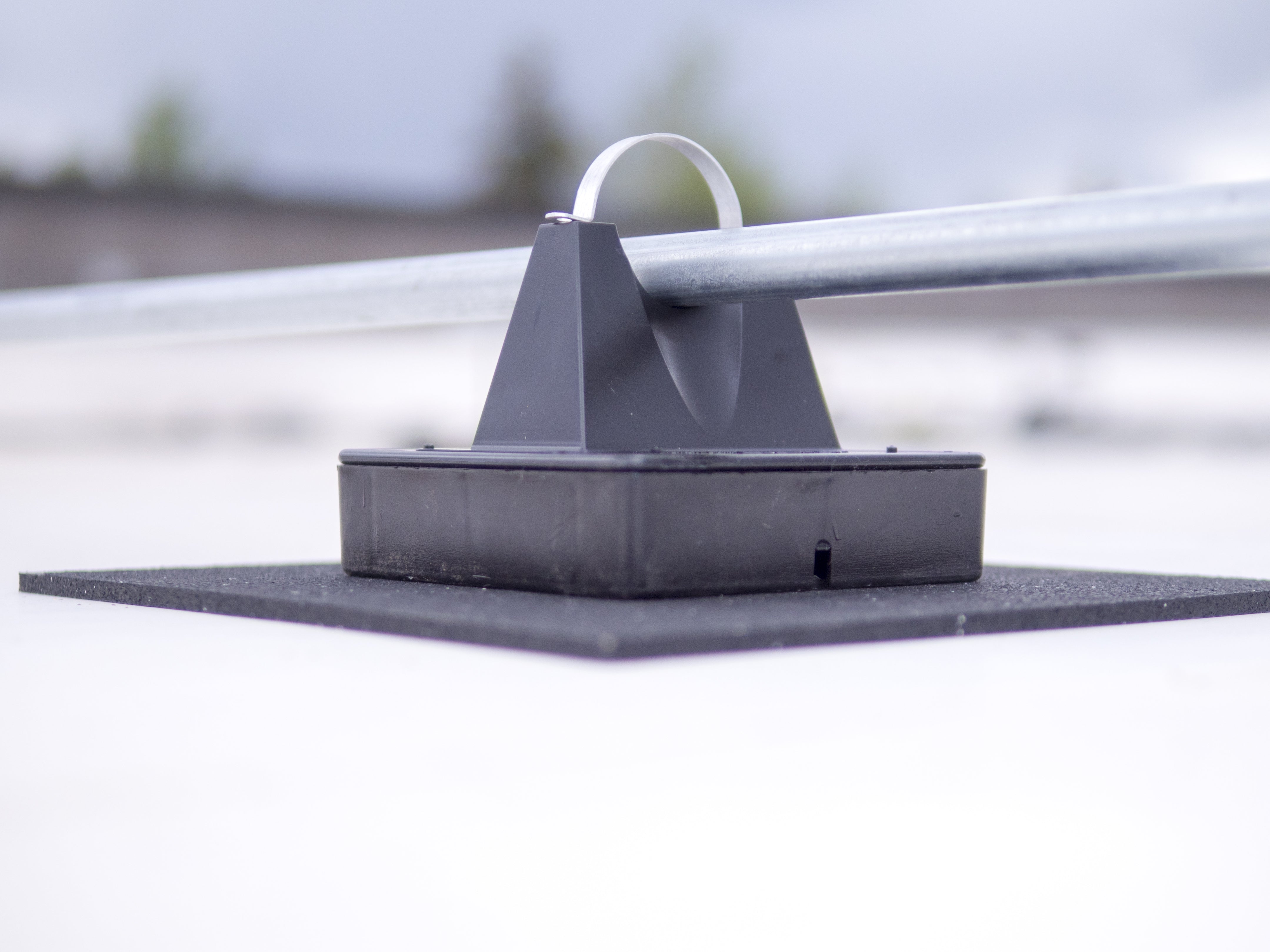

MIRO 1.5 Pillow Block Rooftop Pipe Support

Product Description

The MIRO 1.5 Pillow Block Rooftop Pipe Support is designed for reliable support of various piping and duct applications on rooftops. This support is ideal for gas pipes, electrical conduits, and solar piping. It features a U-shaped cradle made from polycarbonate resin to securely hold pipes in place. The support is suitable for commercial and industrial use, ensuring stable rooftop installations.

• Constructed with polycarbonate for durability.
• Supports pipes with an outer diameter of up to 1.9 inches.
• Designed for reliable rooftop plumbing solutions.

Product Highlights

This rooftop pipe support effectively accommodates pipes with an inside diameter of 1.5 inches.

Product Information

Standard Information

• Base Material: Polycarbonate
• Max Pipe Size: 1-1/2 inside diameter and 1-9/10 outside diameter

Technical Specifications

• Deck Size: 6 inches square
• Stacking Platform Height: 2 inches
• Cradle Height: 3 inches
• Max Pipe Clearance: 2 inches above the roof
• Max Load Weight: 72 lbs per pipestand
• Recommended Spacing: 7 feet center maximum
