Minka f756l-cl Future 65 in 8 Blade Led Outdoor Ceiling Fan

Product Description

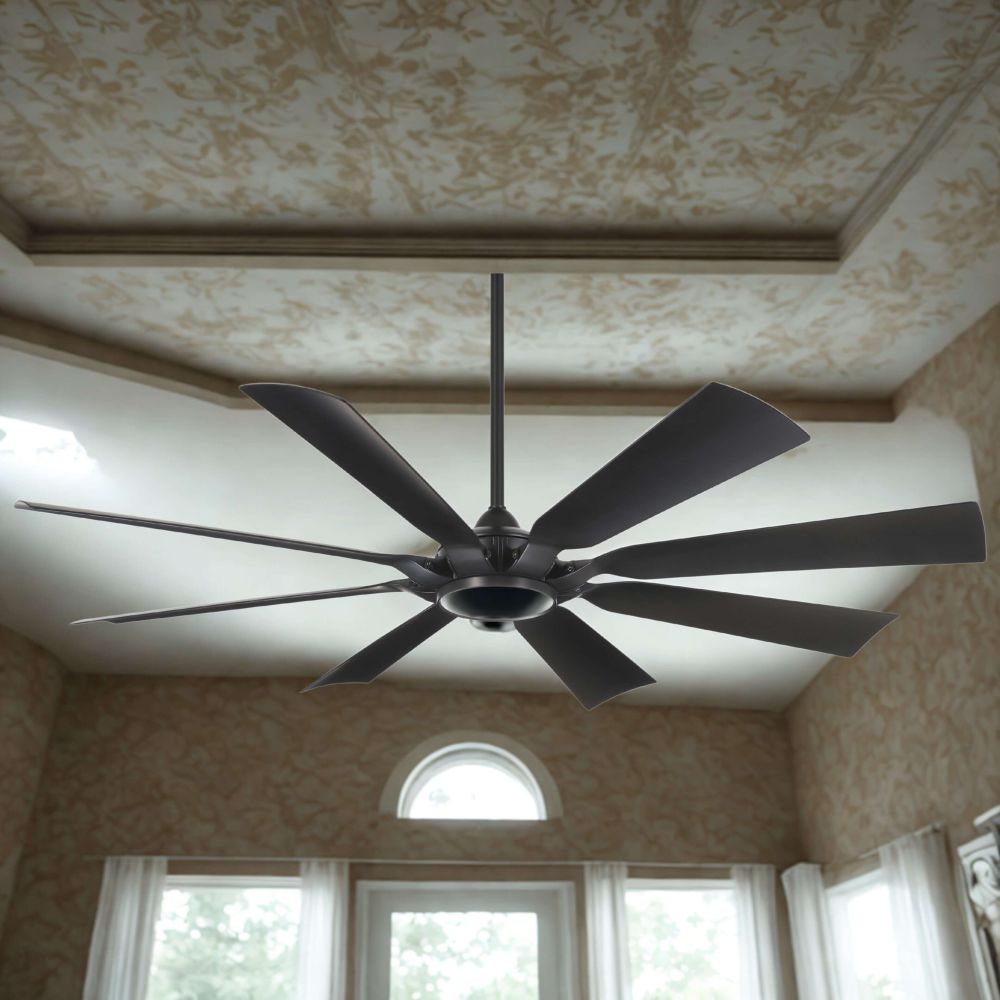

The MINKA f756l-cl Future is a 65-inch, 8-blade outdoor ceiling fan designed for wet-location installations. It runs on a DC motor measuring 120 x 25 mm and delivers up to 7,921 CFM at high speed while drawing only 36.87 watts, making it an efficient choice for large covered patios, pergolas, and commercial outdoor spaces. An integrated Z09 LED module with a Y10 socket produces 2,113.2 delivered lumens at 3000K color temperature and a CRI of 96, providing warm, high-quality light output. The fan is ETL-listed for wet locations and is reversible-motor capable for seasonal airflow direction changes.

This fan is intended for outdoor residential and light commercial applications where wet-location listing is required. The 65-inch blade sweep suits large open areas such as covered porches, pool enclosures, and outdoor dining spaces. It ships as a complete package including blades finished in Coal, an integrated LED light kit, and an RC1000 remote with DC canopy receiver. No Wi-Fi function is included. The Coal blade finish and blade pitch of 14 degrees support both aesthetics and airflow performance in demanding outdoor environments.

Key Features

• 65-inch blade sweep with 8 ABS blades pitched at 14 degrees for high-volume airflow
• DC motor (120 x 25 mm) draws as little as 6.03 watts at low speed for energy-efficient operation
• Integrated LED module: 3,186 initial lumens, 2,113 delivered lumens, 3000K, CRI 96, dimmable, rated 20,000 hours
• ETL-listed for wet locations — suitable for fully exposed outdoor installations
• Includes RC1000 remote control with DC canopy receiver; no Wi-Fi module required
• Sloped ceiling compatible with a 6-inch downrod included

Compatibility

Compatible remote: RC1000. Designed as an OEM-matched replacement or new installation unit for wet-rated outdoor ceiling fan applications requiring a 65-inch sweep and DC motor platform.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Power to the circuit must be shut off at the breaker before beginning any wiring or mounting work. This fan is rated for wet locations, but the electrical box and canopy must be rated for outdoor use and capable of supporting the fan's 24.47-pound weight. The included 6-inch downrod is suitable for standard flat or sloped ceilings; verify slope compatibility and use appropriate mounting hardware for angled installations.

Technical Specifications

• Blade Sweep: 65 inches
• Number of Blades: 8
• Blade Pitch: 14 degrees
• Blade Material: ABS
• Blade Finish: Coal
• Motor Type: DC
• Motor Size: 120 x 25 mm
• High Speed CFM: 7,921
• High Speed Watts: 36.87
• High Speed RPM: 100
• High Speed Amps: 0.57
• Low Speed CFM: 3,977
• Low Speed Watts: 6.03
• Low Speed RPM: 54
• Low Speed Amps: 0.13
• Light Kit: Included
• Lamping Type: Z09 LED Module
• Socket Type: Y10
• Number of Bulbs: 1
• Max Bulb Wattage: 40 watts
• Initial Lumens: 3,186
• Delivered Lumens: 2,113
• Color Temperature: 3000K
• CRI: 96
• Dimmable: Yes
• Rated Life Hours: 20,000 hours
• Width: 65 inches
• Ceiling to Lowest Point: 13.63 inches
• Ceiling to Blade: 10.8 inches
• Downrod Length: 6 inches
• Weight: 24.47 pounds
• Control Type: RC1000 Remote with DC Canopy Receiver
• Remote Included: Yes
• Sloped Ceiling Compatible: Yes
• Environment: Wet Location
• Certifications: ETL

Standard Information

• Brand: MINKA
• Manufacturer Part Number: f756l-cl
