Minerallac BC516KC1234 Beam Clamp With Conduit Clip 1/2 to 3/4 in Conduit Pack 100

Product Description

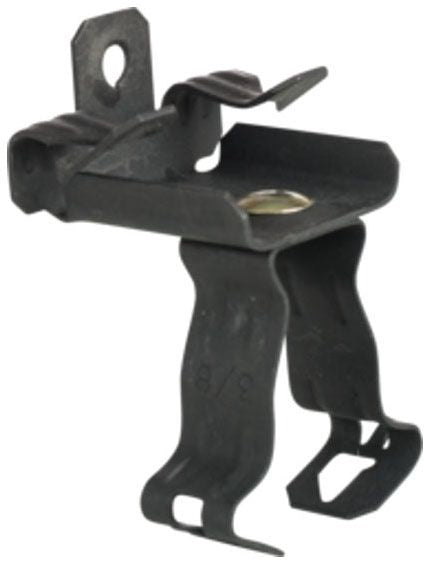

Minerallac BC516KC1234 is a hammer-on beam clamp with an integrated closed conduit clip for suspending 1/2 to 3/4 in EMT or rigid conduit from the bottom of a beam. The assembly is made from zinc phosphate and oil finished spring steel, fits 5/16 to 1/2 in flanges, and is rated for a 75 lb load. It installs with a hammer, uses a 1/4-20 fastening hole, and pivots 360 degrees. Overall dimensions are 3.31 x 2.16 x 1.40 in; beam clamp thickness 0.042 in; conduit clip thickness 0.035 in.

• Hammer-on installation for bottom beam mounting; 1/4-20 fastening hole and two mounting holes; pivots 360 degrees
• Fits 5/16 to 1/2 in flange and secures 1/2 to 3/4 in EMT or rigid conduit; includes closed conduit clip
• Spring steel construction with zinc phosphate and oil finish; rated load capacity 75 lb; dimensions 3.31 x 2.16 x 1.40 in

Product Highlights

Hammer-on beam clamp with integrated conduit clip; fits 5/16–1/2 in flange and 1/2–3/4 in conduit; 75 lb load capacity; supplied in packs of 100.

Product Information

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: BC516KC1234
• Country of Origin: USA

Technical Specifications

• Brand: Minerallac
• MPN: BC516KC1234
• Product Type: Beam clamp with conduit clip
• Material: Spring steel (zinc phosphate and oil finish)
• Finish: Zinc phosphate and oil
• Conduit Size: 1/2 to 3/4 in
• Flange Width: 5/16 to 1/2 in
• Mounting Type: Bottom mounting
• Installation: Hammer-on
• Load Capacity: 75 lb
• Fastening Hole: 1/4-20 (1/4-20 TPI)
• Thickness: Beam clamp 0.042 in; conduit clip 0.035 in
• Number of Holes: 2
• Dimensions: 3.31 x 2.16 x 1.40 in
• Package Quantity: 100
• Includes: Conduit clip
• Rotation: 360 degree pivot
• Standard: UL Control #9N38
• Country Of Origin: USA
• Individual Weight (per package info): 0.0900 lb
• UPC: 784610186018
• UNSPSC: 31162306
• Compliance - Buy America Act: Yes
• Compliance - Buy American Act: Yes
• Compliance - RoHS: Yes
• Prop65 Compliance: In compliance with Prop65; not known to contain associated chemicals
