Minerallac BC18ST Beam Clamp with Stud (1/8-1/4 in)

Product Description

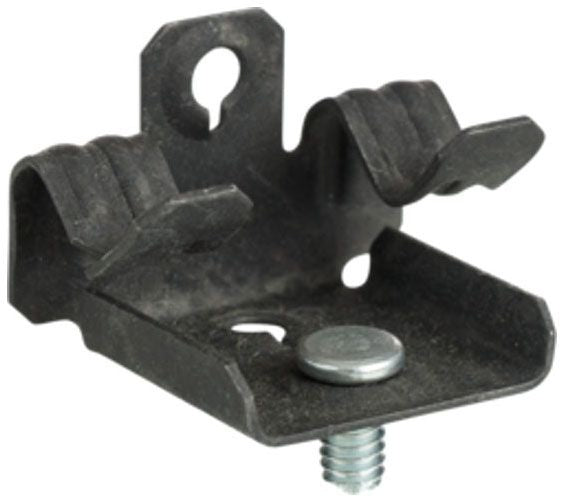

The Minerallac BC18ST is a hammer-on beam clamp designed to suspend boxes, fixtures, and bridle rings from beam flanges. It fits flange thicknesses from 1/8 inch to 1/4 inch and includes a 1/4-20 x 3/8 inch staked stud with 1/4-20 thread impressions on the bottom and back. The clamp is made of spring steel with a zinc phosphate and oil finish, has a 75 lb load capacity, and overall dimensions of 1.46 x 1.75 x 1.42 inches.

• Fits 1/8 in to 1/4 in flange thickness; jaw capacity 1/8 in–1/4 in; load capacity 75 lb
• Includes 1/4-20 x 3/8 in staked stud; 1/4-20 thread impressions on bottom and back
• Spring steel construction with zinc phosphate and oil finish; overall dimensions 1.46 x 1.75 x 1.42 in; thickness 0.042 in

Product Highlights

Hammer-on beam clamp BC18ST fits 1/8–1/4 in flanges, includes 1/4-20 x 3/8 in stud, 75 lb rating, UL control #9N38

Product Information

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: BC18ST
• Country of Origin: USA

Technical Specifications

• Brand: MINERALLAC
• MPN: BC18ST
• Product Type: Hammer-on beam clamp
• Type: Beam Clamp with Stud
• Material: Spring steel
• Finish: Zinc phosphate and oil
• Jaw Capacity (Minimum): 1/8 in
• Jaw Capacity (Maximum): 1/4 in
• Load Capacity: 75 lb
• Included Stud: 1/4-20 x 3/8 in (staked)
• Thread Impression: 1/4-20 on bottom and back
• Number of Holes: 2
• Thickness: 0.042 in
• Overall Dimensions: 1.46 in x 1.75 in x 1.42 in
• Application: Suspend boxes, fixtures and bridle rings to beam flanges
• Approval/Certification: UL control #9N38
• Country of Origin: USA
