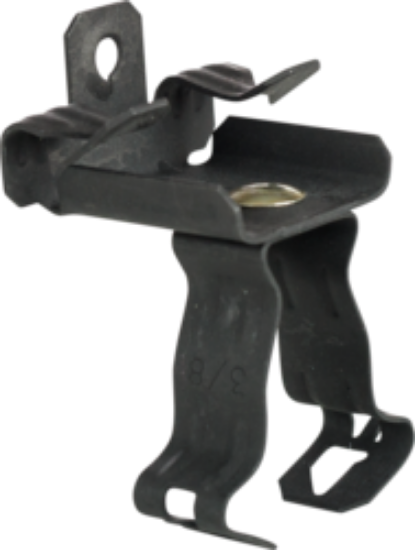

Minerallac BC18KC1234 Beam Clamp with Conduit Clip 1/2 & 3/4 EMT (1/8-1/4 Flange)

Product Description

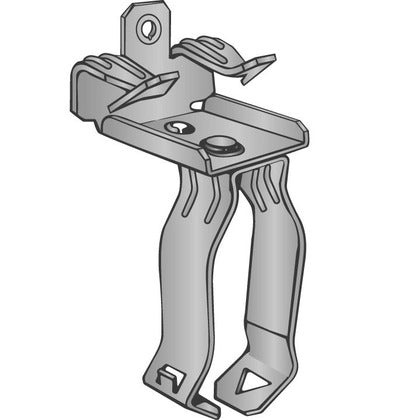

Minerallac BC18KC1234 is a hammer-on beam clamp with a closed conduit clip designed to suspend 1/2 in and 3/4 in EMT or rigid conduit from beams. The assembly fits beam/flange widths of 1/8 to 1/4 in, is formed from spring steel with a zinc phosphate and oil finish, provides two 1/4"-20 fastening holes, installs with a hammer, and is rated for a 75 lb load.

• Fits 1/2 in and 3/4 in EMT or rigid conduit; beam flange fit 1/8 to 1/4 in
• Spring steel construction with zinc phosphate and oil finish; 75 lb load capacity
• Hammer-on installation, two 1/4"-20 fastening holes, pivots 360 degrees for bottom mounting

Product Highlights

Hammer-on beam clamp with closed conduit clip for 1/2 and 3/4 in conduit; 1/8–1/4 in flange fit; 75 lb rating; spring steel with zinc phosphate/oil finish.

Product Information

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: BC18KC1234
• Country of Origin: USA

Technical Specifications

• Brand: Minerallac
• Manufacturer Part Number: BC18KC1234
• Type: Beam clamp with conduit clip
• Conduit Size: 1/2 in, 3/4 in
• Beam Flange Fit: 1/8 in to 1/4 in
• Material: Spring steel
• Finish: Zinc phosphate and oil
• Installation: Hammer-on
• Mounting Type: Bottom
• Load Capacity: 75 lb
• Number of Holes: 2
• Fastening Hole / Screw Size: 1/4 in-20 TPI
• Dimensions: 3.10 x 2.07 x 1.45 inches (H x W x D)
• Weight: 0.09 lb
• Thickness: Beam clamp 0.042 in; conduit clip 0.035 in
• Pivot: 360 degrees
• Application: Electrical conduit
• Package Quantity: 100 per pack
• UPC: 78461015600
• Country of Origin: USA
• Standards / Certifications: UL Control #9N38
• Compliance: Buy America Act: Yes; Buy American Act: Yes; RoHS: Yes
