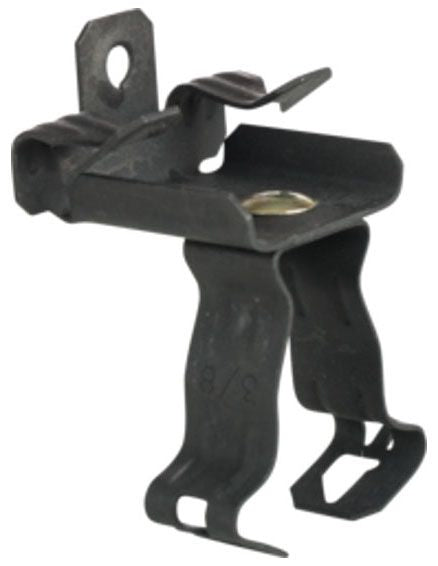

Minerallac BC18KC1 Beam Clamp with Conduit Clip 1 in. Conduit (Pack 100)

Product Description

Minerallac BC18KC1 is a hammer-on beam clamp with a closed conduit clip assembly for mounting 1-inch EMT or rigid conduit to 1/8–1/4-inch flanges. The assembly is made from spring steel with a zinc phosphate and oil finish, includes two 1/4-20 fastening holes, and is rated for a 75 lb load. Typical application is electrical conduit mounting; sold in standard packages of 100.

• Hammer-on beam clamp that fits 1/8–1/4 in. flanges and secures 1 in. EMT/rigid conduit
• Constructed of spring steel with zinc phosphate and oil finish; two 1/4-20 fastening holes
• Rated 75 lb load capacity; standard package quantity 100

Product Highlights

Beam clamp with closed conduit clip for 1 in. conduit, zinc phosphate/oil finish, 75 lb load, two 1/4-20 holes, sold in packs of 100.

Product Information

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: BC18KC1
• Country of Origin: USA

Technical Specifications

• Brand: Minerallac
• MPN: BC18KC1
• Type: Beam clamp with conduit clip
• Application: Electrical conduit
• Conduit Size: 1 inch
• Beam/Flange Size: 1/8 to 1/4 inch
• Material: Spring steel
• Finish: Zinc phosphate and oil
• Installation: Hammer-on
• Load Capacity: 75 lb
• Number of Holes: 2
• Fastening Hole / Screw Size: 1/4 inch-20 TPI
• Dimensions: 3.60 x 1.75 x 1.41 inches
• Thickness: Beam clamp 0.042 in; Conduit clip 0.035 in
• Package Quantity: 100 per standard package
• Standards/Approvals: UL Control #9N38
• Country of Origin: USA
• RoHS: Yes
• Buy America Act Compliance: Yes
• Buy American Act Compliance: Yes
• Prop65 Compliance: Complies
