Minerallac 703 Set Screw Beam Clamp (Malleable Iron) Fits Up to 7/8 Flange 1/2-13 Tapped Holes Bottom and Back of Beam Clamp Zinc Plated

Brand: MINERALLAC
SKU: 703
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

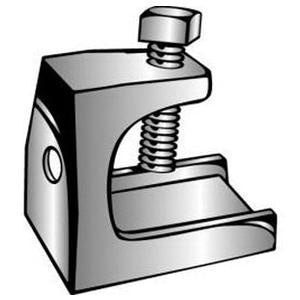

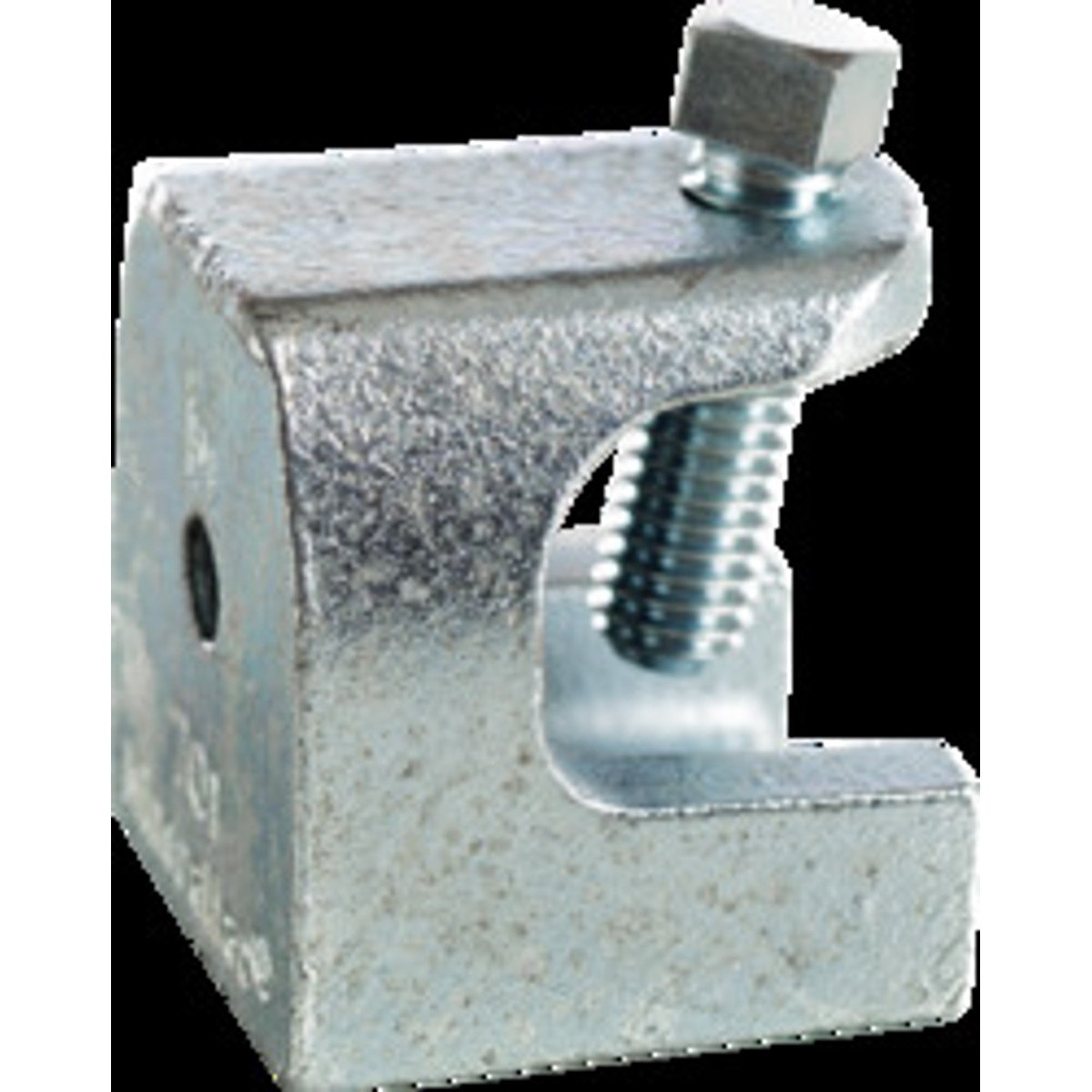

The Minerallac 703 is a set screw beam clamp made from malleable iron. This product is designed to fit flanges up to seven eighths inch in width and features half-inch-13 tapped holes. It is zinc plated for durability and resistance to corrosion.

  • Compatible with conduit hangers, bridle rings, and drop rods.
  • Maximum load capacity is nine hundred pounds.
  • Torque rating of two hundred fifty inch-pounds.

Product Highlights

This beam clamp is suitable for various applications, including electrical installations and structural support. Ideal for use in commercial and industrial settings.

Product Information

Standard Information

  • MPN: 703
  • Brand: Minerallac Traditional
Technical Specifications
Material
Malleable Iron
Maximum Load
900 lb
Torque Rating
250 in-lb
Dimensions
2.48 in Length x 2.63 in Width x 2.16 in Height
Bolt Size
5/8-11 TPI
Rod Size
1/2 in
Finish
Zinc Plated
Country of Origin
United States
Color
Silver
