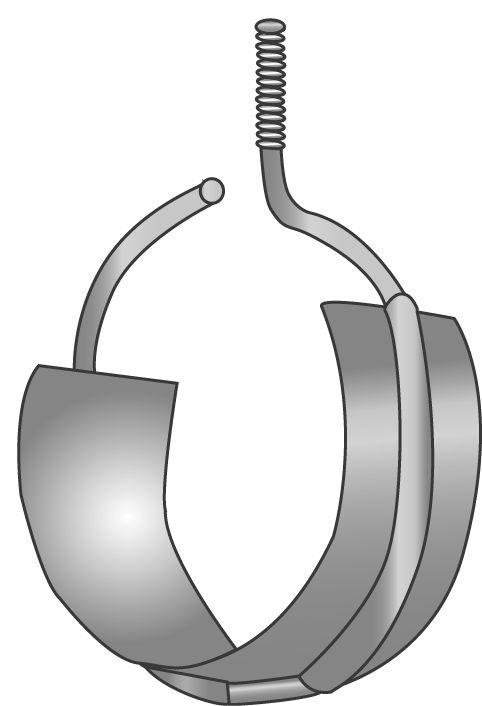

Minerallac 648RS 2 Inch Diameter Zinc Plated Steel Beam Clamp Bridle Ring with Saddle

Product Description

The Minerallac Company 648RS is a two-inch diameter bridle ring made of steel with a zinc plated finish. This product is designed to support low-voltage cables efficiently. The ring features a plastic saddle that provides a wide base, preventing stress on cables while ensuring secure installation. The standard mounting is a one-quarter inch by twenty threads per inch configuration. Other benefits include easy cable access and a load capacity of fifty pounds.

• Made of steel with a zinc finish.
• Includes a plastic saddle for added support.
• Rated for a load capacity of fifty pounds.

Product Highlights

The Minerallac 648RS bridle ring is ideal for supporting low-speed cables, including voice and data communications. Its construction allows for quick installation and removal of cables.

Product Information

Standard Information

• Brand: Minerallac Company
• Manufacturer Part Number: 648RS

Technical Specifications

• Ring Diameter: 2 inches
• Material: Steel
• Finish: Zinc Plated
• Thickness: 0.162 inches
• Load Capacity: 50 lbs
• Thread Size: 1/4-20 TPI
• Color: Silver
• Construction: Wire Formed
