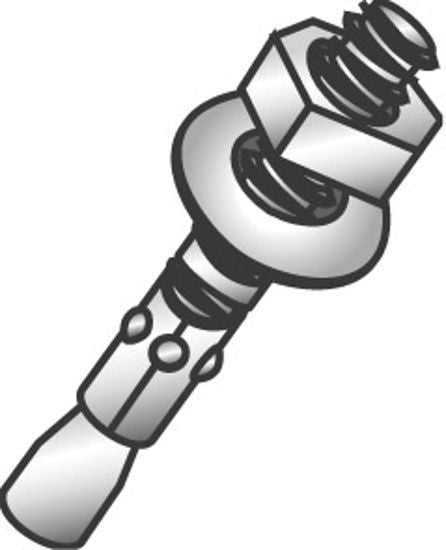

Minerallac 62244J Wedge Anchor 3/8 X 2-3/4 Inch

Product Description

The MINERALLAC 62244J is a wedge anchor designed for secure fastening into concrete and masonry substrates. At 3/8 inch in diameter and 2-3/4 inches in length, this anchor provides reliable holding strength for attaching conduit supports, equipment mounts, strut channel, and similar trade hardware to structural concrete surfaces. Wedge anchors of this type are a standard fastener choice for electrical, mechanical, and plumbing contractors working in commercial and industrial construction environments.

This anchor is suited for use in solid concrete applications where a permanent, high-load fastening point is required. Common installation scenarios include securing conduit hangers, pipe supports, junction box brackets, and equipment bases to concrete floors, walls, and ceilings. It is appropriate for both new construction and retrofit work where structural concrete is present.

Key Features

• 3/8 inch diameter with 2-3/4 inch length for medium-duty concrete fastening
• Wedge-style expansion mechanism provides strong pull-out resistance in solid concrete
• Suitable for attaching conduit supports, equipment mounts, and strut systems
• Compact length appropriate for thinner concrete sections and wall applications

Compatibility

Designed as an OEM-style replacement and standard-fit wedge anchor for use with 3/8 inch hardware in solid concrete and masonry fastening applications.

Installation Notes

Wedge anchors are installed by licensed electricians, plumbers, pipefitters, and mechanical contractors in accordance with local building codes. Drill a hole to the specified diameter and minimum embedment depth using a hammer drill with a carbide-tipped bit before driving the anchor. Always power down adjacent electrical systems and follow applicable OSHA fall protection requirements when working at height. Do not install wedge anchors in cracked, spalled, or deteriorated concrete.

Technical Specifications

• Diameter: 3/8 inches
• Length: 2-3/4 inches
• Anchor Type: Wedge Anchor
• UPC: 08593708292

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: 62244J
