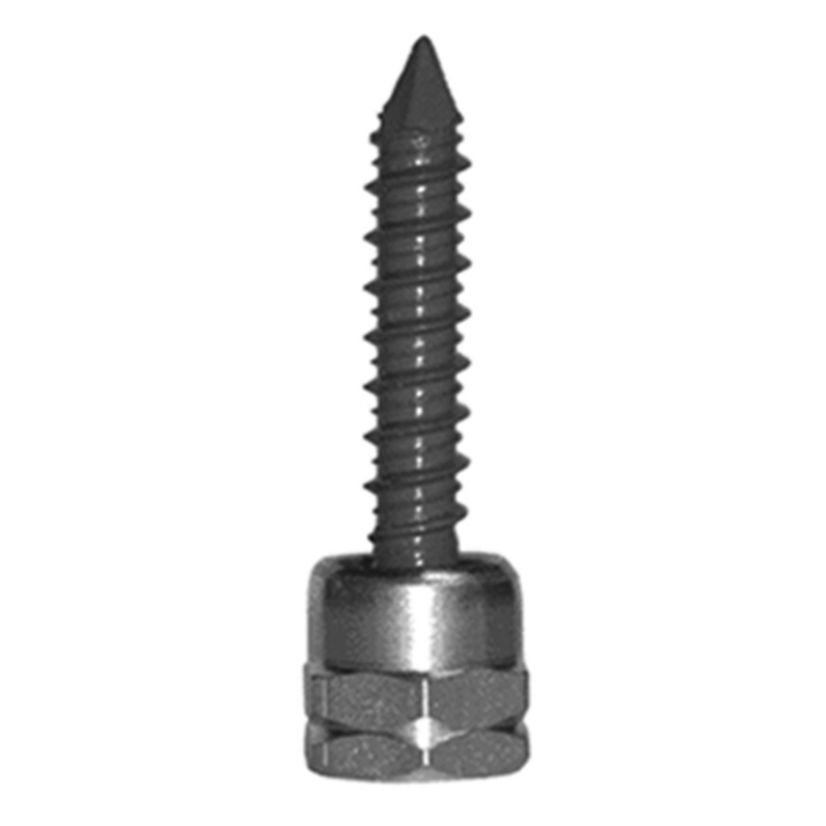

Minerallac 61186J Cully 5/16 x 1-3/4 inches Sammys for Concrete, Vertical Mounting, 3/8 inches Rod, Model #CST 20

Product Description

The Minerallac 61186J Cully Sammys are designed for vertical installation into concrete structures for hanging threaded rods. These threaded rod anchors feature a 5/16" diameter and are suitable for use with 3/8" rods. They simplify installation, reducing both time and costs.

• One-step installation process reduces installtion time and cost
• Vertical threaded rod anchors are installed vertically into concrete and have an internally threaded head for receiving threaded rod
• Installs vertically into the bottom of concrete structures for hanging threaded rod

Product Highlights

The Minerallac Cully Sammys provide a reliable and efficient solution for suspending threaded rods from concrete structures.

Product Information

Standard Information

• Brand: Minerallac
• Manufacturer Part Number: 61186J
• Country of Origin: USA

Technical Specifications

• Head Type: 5/8" AF End-Drilled
• Material: Steel
• Size: 5/16" IN
• Type: Threaded Rod Anchor
• Brand: Cully
• Sub Brand: Cully
• Finish: Blue Climaseal Coating
• Length: 1-3/4 Inch
• Country of Origin: USA
• Application: Installs vertically into the bottom of concrete structures for hanging threaded rod
• Diameter: 5/16 in
• Head Size: 5/8 in
• Load Capacity: 200 lb
• Manufacturer: Minerallac Company
• Overall Length: 1-3/4 in
• Package Type: EACH
• Rod Size: 3/8 in
• Suitable For Use With: #0 to 5 Minerallac Conduit Hangers, Bridal Ring and 3/8 in Threaded Rod, 3/8-16 Tapped Holes Bottom and Back of Beam Clamp
• Mount Type: Surface
