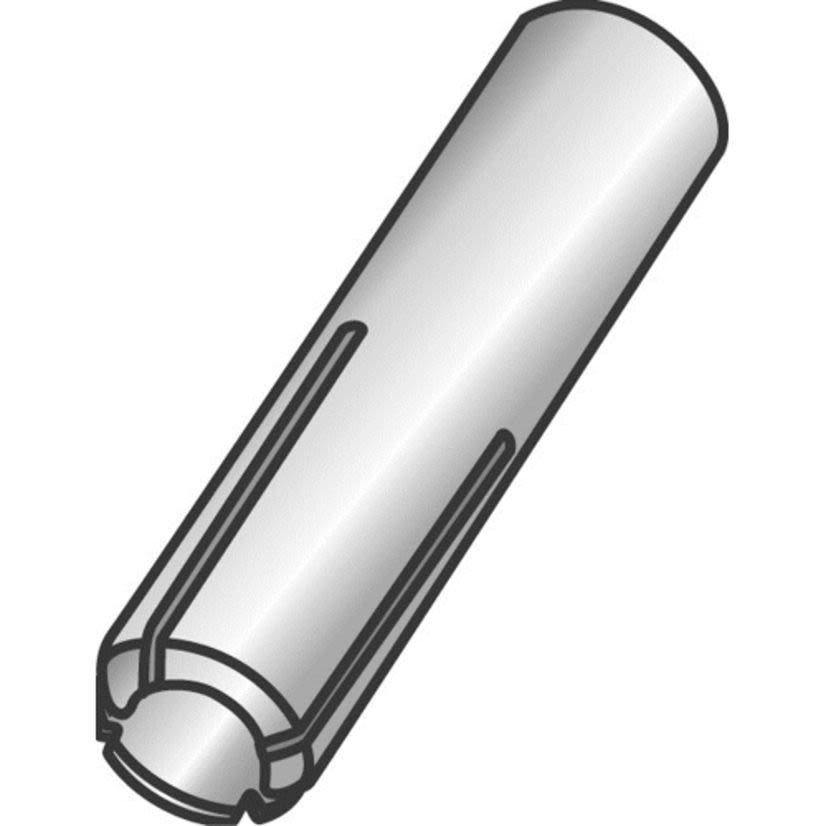

Minerallac 60406J Cully Drop-In Anchor, Steel, 5/8 in Drill, 2 in D Min Embedment

Product Description

The Minerallac 60406J Cully Drop-In Anchor is constructed of steel and requires a 5/8 in drill for installation and has a 2 in minimum embedment depth. It is suitable for flush mounted, medium to heavy duty applications in solid materials such as stone and concrete.

• Can also be used to anchor handrails and floor mounted door stops
• Intended for flush mounted, medium to heavy duty applications in solid materials such as stone and concrete
• It can be used in, but are not limited to, overhead assemblies such as duct work and pipe hangers because the internal plug holds its position

Product Highlights

The Minerallac 60406J drop-in anchor is ideal for use with 4 in EMT/Rigid/IMC conduits. It features a zinc plated finish and a 1/2-13 thread size.

Product Information

Standard Information

• Brand: Minerallac
• Manufacturer Part Number: 60406J
• Country of Origin: CN

Technical Specifications

• Country of Origin: CN
• Drill Size: 5/8 in
• Finish: Zinc Plated
• Load Capacity: 230 lb
• Manufacturer: Minerallac Company
• Material: Steel
• Minimum Embedment Depth: 2 in
• Mounting Type: Bolt-On
• Thread Size: 1/2-13
