Minerallac 602B 3/8 Universal Beam Clamp - Steel / Zinc Plated

Product Description

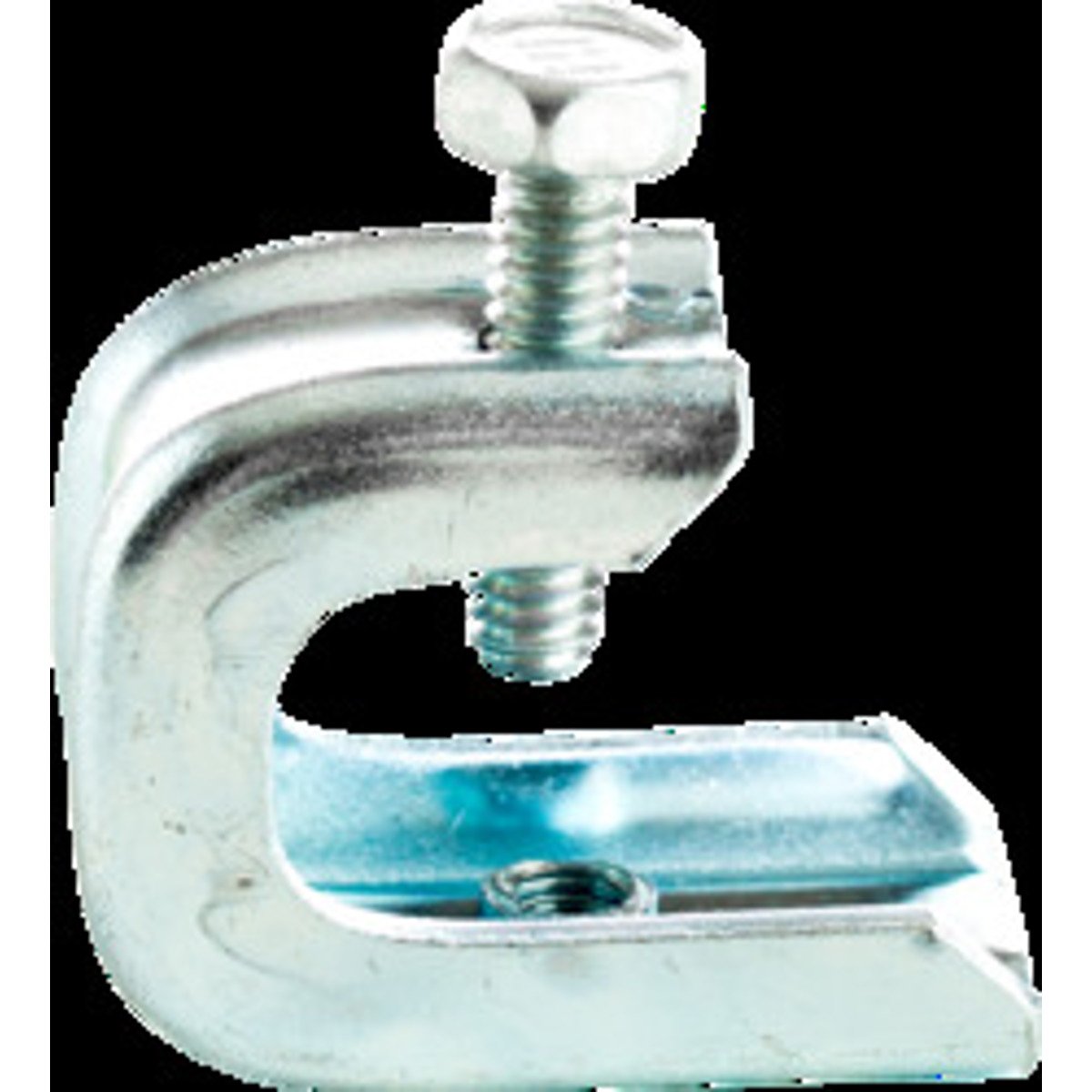

The Minerallac Company 602B is a set screw beam clamp made from steel with a zinc plated finish. It is designed to fit flanges up to three-quarters of an inch. The clamp features three-eighths by sixteen tapped holes located at the bottom and back for secure mounting. This durable clamp is suitable for various applications, including use with Minerallac conduit hangers and threaded rods.

• Material: Steel
• Finish: Zinc Plated
• Maximum Load: 200 lbs

Product Highlights

This clamp is compliant with Buy American standards and is made in the USA. It is ideal for hanging conduit, cable, and other fixtures from structural supports.

Product Information

Standard Information

• Catalog Number: 602B
• Manufacturer: Minerallac

Technical Specifications

• Torque Rating: 60 IN-LBF
• Width: 2.20 inches
• Length: 1.20 inches
• Color: Silver
• Sub Brand: Minerallac Traditional
• Applications: Compatible with Minerallac conduit hangers #0 to #5, bridal rings, and threaded rods
• GTIN: 00784610246033
• UPC: 78461024603
