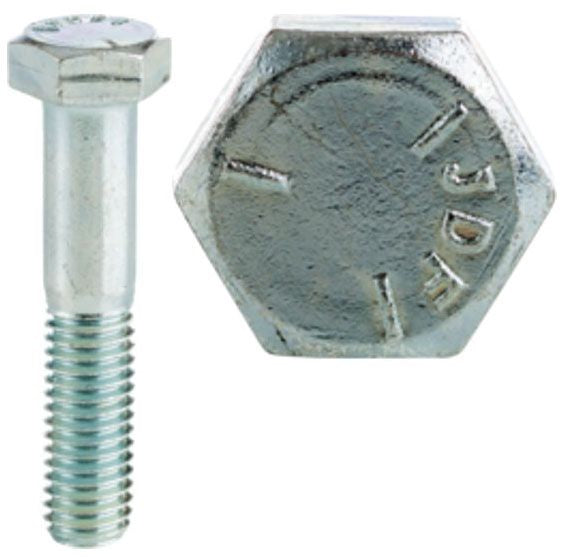

Minerallac 55009J Cap Screw 1/4-20 X 1/2 Inch Grade 5

Product Description

The MINERALLAC 55009J is a Grade 5 cap screw with a 1/4-20 thread size and 1/2 inch length. Cap screws of this type are externally threaded fasteners used to clamp or secure components in electrical, mechanical, and HVAC assemblies. The Grade 5 rating indicates medium-strength carbon steel construction with a tensile strength suitable for general industrial and trade applications. This fastener is installed by electricians, HVAC technicians, and mechanical contractors wherever a reliable threaded fastener connection is required in panel, equipment, or structural assemblies.

This cap screw is suited for use in residential and light commercial installations where a 1/4-20 threaded fastener is specified. Common applications include securing electrical enclosures, equipment panels, conduit supports, HVAC equipment frames, and other mechanical assemblies that require a standard hex-head or socket-head cap screw in the 1/4-20 thread pattern. The 1/2 inch length makes it appropriate for thin to medium material stack-ups.

Key Features

• 1/4-20 thread size for compatibility with standard 1/4-20 tapped holes
• 1/2 inch length suitable for thin to medium material thicknesses
• Grade 5 rating indicating medium-strength carbon steel construction
• Lightweight at 0.01 pounds per fastener for easy handling and inventory

Compatibility

Designed as an OEM-style replacement or standard-stock fastener for assemblies requiring a 1/4-20 x 1/2 inch Grade 5 cap screw in electrical, HVAC, plumbing, or mechanical equipment applications.

Installation Notes

Installation is performed by licensed electricians, HVAC technicians, or mechanical contractors as part of equipment assembly or service. Always de-energize and lock out electrical equipment before installing or replacing fasteners in or near live panels or enclosures. Use the appropriate driver or wrench for the head style and apply torque in accordance with the equipment manufacturer specifications. Follow applicable NEC or equipment guidelines for fastener use in electrical enclosures.

Technical Specifications

• Thread Size: 1/4-20
• Length: 0.5 inches
• Grade: Grade 5
• Weight: 0.01 pounds
• UPC: 08593704194

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: 55009J
