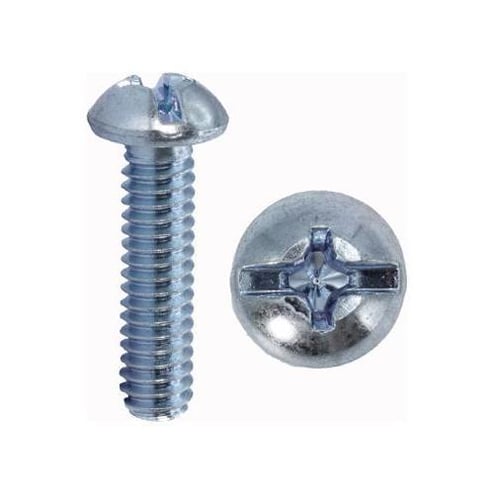

Minerallac 52448J Combination Machine Screw #8-32 3 in

Product Description

The Minerallac 52448J combination machine screw features a #8-32 thread size and an overall length of 3 inches. Constructed from steel with a zinc-plated finish, it has a round head with a Phillips/slotted drive. Ideal for various applications, this machine screw provides a strong and reliable fastening solution.

• Designed to go through a pre-tapped hole or nut to form a mating thread.
• Provides superior strength compared to spaced thread screws.
• Features a Phillips/Slotted drive.

Product Highlights

The Minerallac combination machine screw is made from steel with a zinc-plated finish and is suitable for industrial, commercial, and residential applications.

Product Information

Standard Information

• Brand: Minerallac
• Manufacturer Part Number: 52448J
• Country of Origin: China

Technical Specifications

• GTIN: 00085937082534
• UNSPSC: 31161504
• Country of Origin: China
• Diameter - Thread Size: #8-32
• Drive Size: #2
• Drive Type: Phillips/Slotted
• Finish: Zinc Plated
• Head Size: 0.298 in Dia x 0.114 in H
• Head Type: Round
• Material: Steel
• Measurement System: Imperial
• Overall Length: 3 in
• Thread Type: 2A External
• Type: Machine Screw
• BABA Compliant: No
• Sold as: EACH
• Thread per Inch: 32
• Head Diameter: 0.298"
• Head Height: 0.114"
• Size: 8-32 x 3"
