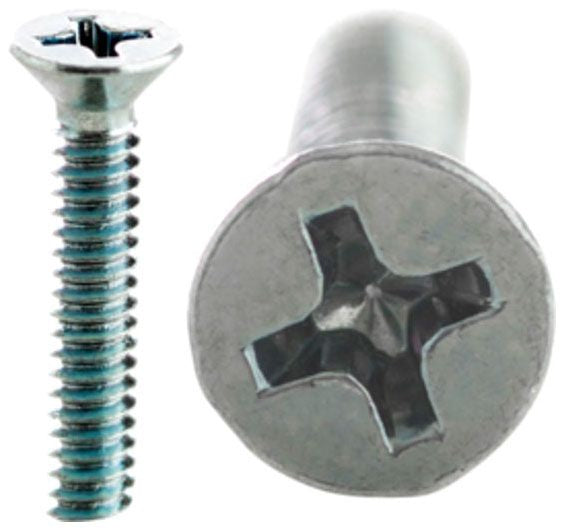

Minerallac 50125J 6-32x1-1/2 Flat Head Phillips Machine Screw

Product Description

The MINERALLAC 50125J is a 6-32 x 1-1/2 inch flat head Phillips drive machine screw designed for electrical and mechanical fastening applications. The flat head profile sits flush with the mounting surface when installed, making it well suited for panel work, junction box assembly, and conduit fitting installation. The 6-32 thread designation indicates a number 6 diameter with 32 threads per inch, a standard size widely used across electrical enclosures, equipment racks, and light fixtures. Electricians and electrical contractors are the primary installers of this fastener type.

This machine screw is commonly used in residential and commercial electrical installations where a flush, low-profile fastener is required. Typical applications include securing cover plates, mounting components inside electrical panels, and fastening equipment to strut or enclosure hardware. The Phillips drive allows for fast installation with standard hand tools or a power driver.

Key Features

• 6-32 thread size — standard for electrical enclosures and equipment racks
• 1-1/2 inch length provides reach for stacked panels and thicker mounting surfaces
• Flat head profile sits flush with the mounting surface after installation
• Phillips drive compatible with standard No. 2 Phillips screwdrivers and power drivers
• Machine screw thread form for use with tapped holes or nuts

Compatibility

Designed as a standard 6-32 machine screw for use in electrical enclosures, junction boxes, panel assemblies, and general electrical equipment where a flat head Phillips fastener is specified.

Installation Notes

Installation is performed by licensed electricians or qualified electrical technicians. De-energize all circuits and follow lockout/tagout procedures before working inside any electrical enclosure. Use a No. 2 Phillips screwdriver or appropriately sized bit to avoid cam-out and fastener damage. Ensure the mating hole is properly tapped to 6-32 threads or use a matching nut on the opposite side of the material.

Technical Specifications

• Thread Size: 6-32
• Length: 1-1/2 inches
• Head Style: Flat Head
• Drive Type: Phillips
• Fastener Type: Machine Screw
• UPC: 08593708594

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: 50125J
