Minerallac 2b Conduit Hanger 1 Inch Emt Rmc Imc Zinc Plated 100pk

Product Description

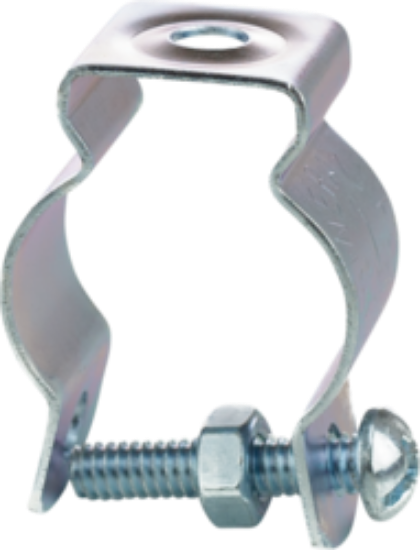

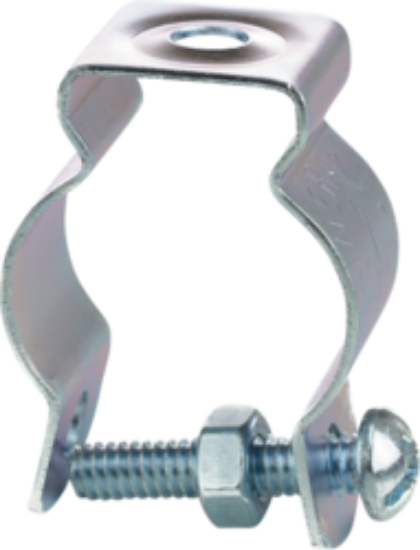

The MINERALLAC 2b is a zinc-plated steel conduit hanger designed to secure 1-inch EMT or 1-inch RMC/IMC conduit runs to wood, steel, concrete, or composite structural members. Manufactured from low-carbon cold-rolled steel with a zinc-plated finish, it resists corrosion in typical commercial and residential electrical installations. Each hanger ships with a bolt and nut included, ready for bolt-on installation. The 2b is sold in a box of 100 units, making it practical for rough-in crews stocking up for panel feeders, branch circuit runs, or conduit riser work where consistent, code-compliant support spacing is required.

This conduit hanger is suited for use in both residential and light commercial electrical work wherever 1-inch EMT or rigid metallic conduit must be supported at structural surfaces. Typical applications include suspended ceiling grids, wood stud framing, steel beam flanges, and poured concrete surfaces. The three-hole configuration allows secure fastening through a range of mounting substrates. Electricians working on service entrance conduit, feeder runs, or exposed branch circuit installations will find this hanger a standard-stock item for everyday conduit support work.

Key Features

• Fits 1-inch EMT and 1-inch RMC/IMC conduit
• Low-carbon cold-rolled steel construction with zinc-plated finish for corrosion resistance
• Bolt-on installation with bolt and nut included
• Three-hole design supports mounting to wood, steel, concrete, and composite substrates
• 60-pound load capacity per hanger
• Box of 100 units for efficient project and van stock

Compatibility

Designed as an OEM-style support fitting for 1-inch EMT and 1-inch RMC/IMC conduit systems in standard residential and commercial electrical installations.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC conduit support requirements for the applicable conduit type and trade size. Power down all circuits in the affected conduit run before beginning any conduit support work. Use fasteners rated for the specific substrate — concrete anchors for poured concrete, structural screws or bolts for wood framing, and appropriate hardware for steel beam mounting. Do not exceed the rated 60-pound load capacity of the hanger.

Technical Specifications

• Conduit Size: 1 inch
• Compatible Conduit Types: EMT, RMC, IMC
• Material: Low-Carbon Cold-Rolled Steel
• Finish: Zinc Plated
• Color: Silver
• Hanger Length: 0.870 inches
• Number of Holes: 3
• Mounting Hole Spacing (O.C.): 0.25 inches
• Load Capacity: 60 pounds
• Mounting Types: Wood, Steel, Concrete, Composite
• Installation Method: Bolt On
• Included Hardware: Bolt and Nut
• Quantity per Box: 100

Standard Information

• Brand: MINERALLAC
• Manufacturer Part Number: 2b
