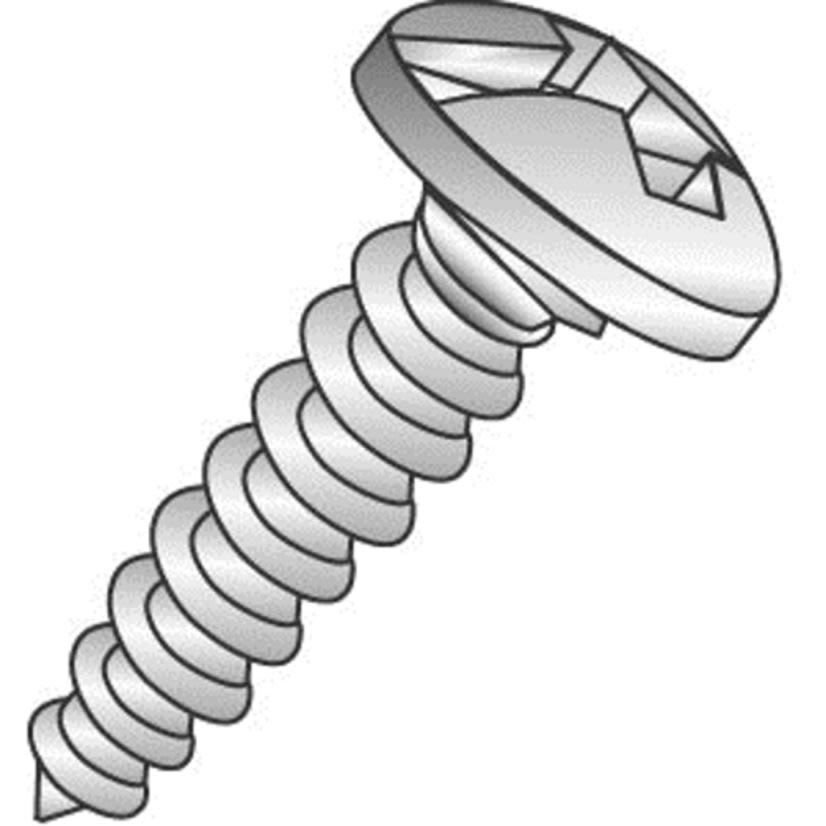

Minerallac 18809J Combination Self-Tapping Sheet Metal Screw #8-15, 1/2 in OAL

Product Description

The Minerallac 18809J is a combination self-tapping sheet metal screw. This screw is designed with a pan head and a Phillips/slotted drive. It is made of steel with a zinc plated finish and features a self-piercing point for easy installation into sheet metal, plastic, or wood.

• Sheet metal screws (self-tapping screws) are threaded fasteners with sharp threads to cut into materials such as sheet metal, plastic or wood

Product Highlights

Combination self-tapping screw with pan head and Phillips/slotted drive for use in sheet metal applications.

Product Information

Standard Information

• Brand: Minerallac
• Manufacturer Part Number: 18809J
• Country of Origin: CN

Technical Specifications

• Drive Type: Phillips/Slotted
• Finish: Zinc Plated
• Head Type: Pan
• Material: Steel
• Measurement System: Imperial
• Overall Length: 1/2 in
• Point Type: Self-Piercing
• Thread Size: Diameter: #8-15
• Thread Type: Class A
• Type: Combination Self-Tapping
• Static Load: 44 lb
• Drive Size: #2
• Head Size: 0.115 in H x 0.322 in W
• Application: sheet metal
• Size: 8 x 1/2" IN
• Length: 1/2 Inch
