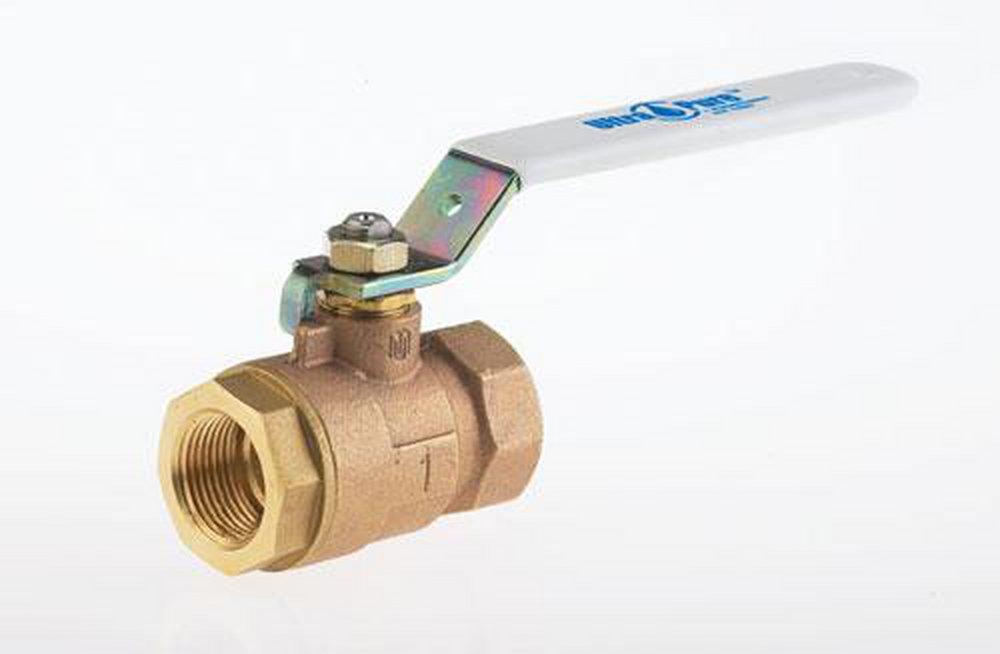

Milwaukee Valve UPBA-400S A 200 Upba400s 2 in. Cast Bronze Full Port Threaded 600# Ball Valve

Product Description

The MILWAUKEE VALVE UPBA-400S A 200 is a 2 in. Cast Bronze Full Port Threaded 600# Ball Valve. Features bubble-tight shutoff and quarter-turn operation. Designed as a low lead valve for potable water applications. It has a blowout-proof stem design and is lead-free. The valve is suitable for various plumbing and industrial applications.

• Bubble-Tight Shutoff
• Quarter Turn Operation
• Low lead valve for potable water

Product Highlights

Full port threaded ball valve with bubble-tight shutoff, quarter-turn operation, and is lead-free for potable water.

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Manufacturer Part Number: UPBA-400S A 200

Technical Specifications

• Ball Material: 316 Stainless Steel
• Connection Size: 2 in
• Connection Type: NPT
• Flow Co-Efficient: 360 Cv
• Item Name: Ball Valve
• Material Specifications: ASTM B584, C89833, ASTM A276 S31600, H02, ASTM B16, C36000
• Material: Bronze
• Model: UPBA-400S
• Operator Type: Zinc-Plated Steel Handle
• Pressure Rating: 600 psi WOG
• Seal Material: RPTFE
• Seat Material: RPTFE
• Stem Material: 316 Stainless Steel
• Sub Brand: Ultra-Pure
• Type: 2-Piece, Full-Port
• Standards/Certifications: MSS SP-110, NSF 61 and 372 certified, IAMPO R&T listed
