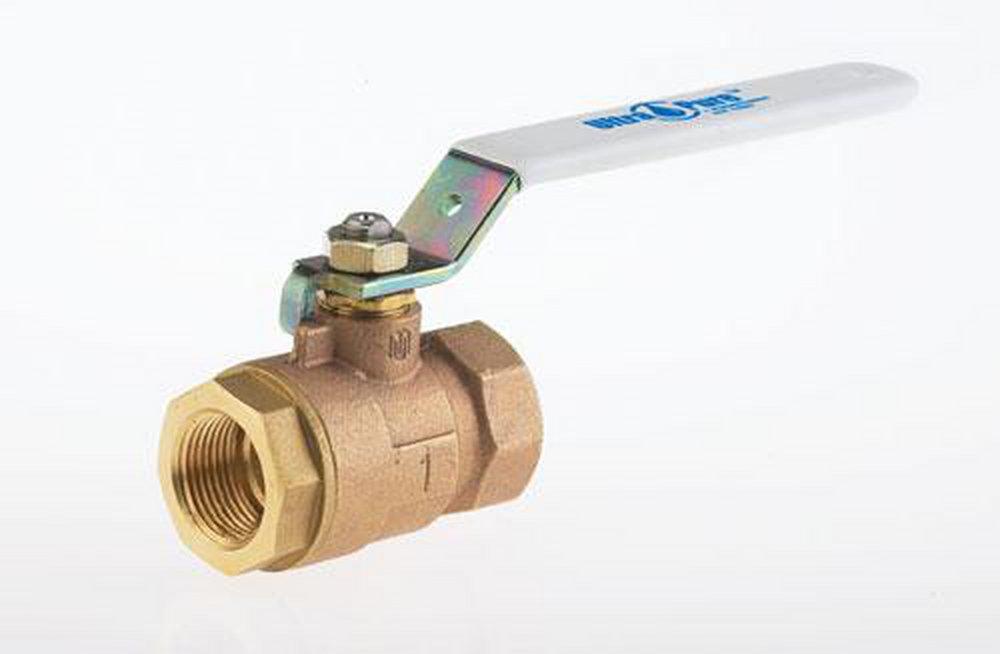

Milwaukee Valve UPBA-400S A 114 Ball Valve 1-1/4 in.

Product Description

The Milwaukee Valve UPBA-400S A 114 is a bronze full port threaded ball valve. This valve features bubble-tight shutoff and quarter-turn operation. Designed as a low lead valve for potable water applications. It has a 1-1/4 inch connection size and a pressure rating of 600 psi WOG.

• Bubble-Tight Shutoff
• Quarter Turn Operation
• Low lead valve for potable water

Product Highlights

The Milwaukee Valve UPBA-400S A 114 is ideal for potable water applications, offering reliable performance and compliance with industry standards.

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Manufacturer Part Number: UPBA-400S A 114
• Country of Origin: US

Technical Specifications

• Ball Material: 316 Stainless Steel
• Connection Size: 1-1/4 in
• Connection Type: NPT
• Flow Co-Efficient: 110 Cv
• Item Name: Ball Valve
• Material Specifications: ASTM B584, C89833, ASTM A276 S31600, H02, ASTM B16, C36000
• Material: Bronze
• Model: UPBA-400S
• Operator Type: Zinc-Plated Steel Handle
• Pressure Rating: 600 psi
• Seal Material: RPTFE
• Seat Material: RPTFE
• Stem Material: 316 Stainless Steel
• Sub Brand: Ultra-Pure
• Type: 2-Piece, Full-Port
• Standards/Certifications: MSS SP-110, NSF 61 and 372 certified, IAMPO R&T listed
• Applications: For potable water applications
• Nominal Size: 1-1/4 in
• End Style: FNPT
• Port Type: Full
• Construction: 2-Piece
• Body Material: Cast Bronze
• Domestic/Import: Domestic
• Inlet to Outlet Length: 3.77 in
• Orifice Size: 1.31 in
• Series: UPBA400S
• Softgoods Material: RPTFE
• Top to Inlet Center: 2.82 in
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Brand: Milwaukee Valve
• UNSPSC: 40141607
