Milwaukee Valve UPBA-400S A 112 Ball Valve 1-1/2 in.

Product Description

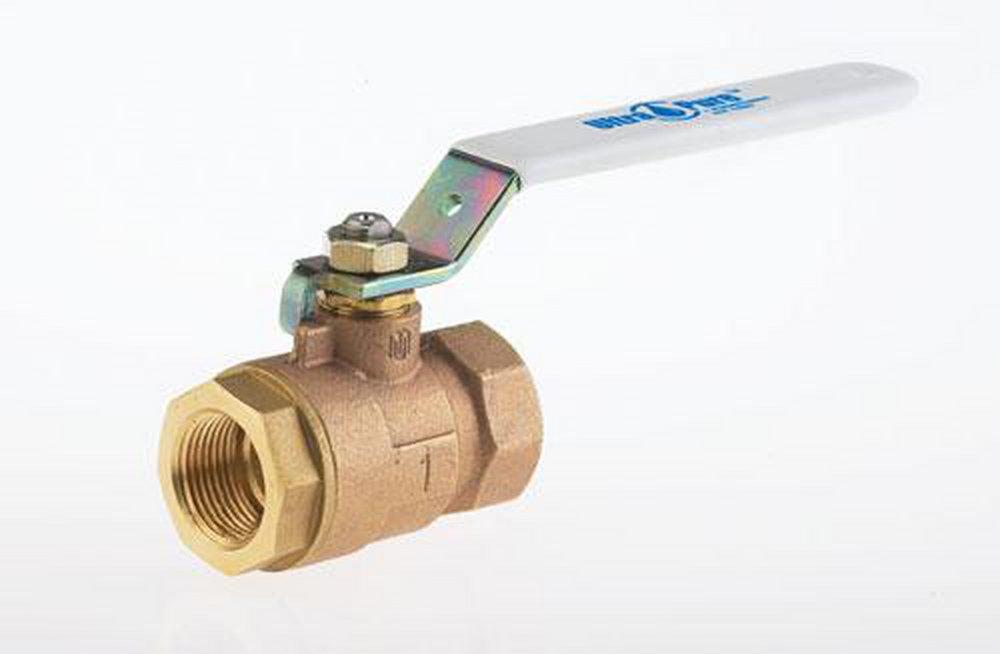

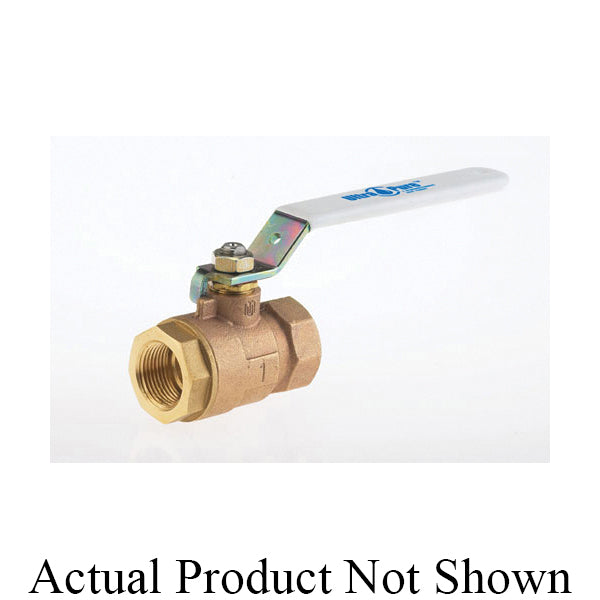

The MILWAUKEE VALVE UPBA-400S A 112 is a bronze full port threaded ball valve. This valve features a bubble-tight shutoff and quarter-turn operation. Designed as a low-lead valve for potable water applications. It has a blowout-proof stem design and a cast bronze body.

• Bubble-Tight Shutoff
• Quarter Turn Operation
• Low lead valve for potable water
• Threaded

Product Highlights

This lead-free, 2-piece full port ball valve is ideal for potable water applications.

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Manufacturer Part Number: UPBA-400S A 112
• Country of Origin: US

Technical Specifications

• Ball Material: 316 Stainless Steel
• Connection Size: 1-1/2 in
• Connection Type: NPT
• Flow Co-Efficient: 185 Cv
• Item Name: Ball Valve
• Material Specifications: ASTM B584, C89833, ASTM A276 S31600, H02, ASTM B16, C36000
• Material: Bronze
• Model: UPBA-400S
• Operator Type: Zinc-Plated Steel Handle
• Packaging Material: PTFE
• Pressure Rating: 600 psi WOG
• Seal Material: RPTFE
• Seat Material: RPTFE
• Stem Material: 316 Stainless Steel
• Sub Brand: Ultra-Pure
• Type: 2-Piece, Full-Port
• Standards/Certifications: MSS SP-110, NSF 61 and 372 certified, IAMPO R&T listed
• Applications: For potable water applications
• Body Material: Cast Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 4.28 in
• Nominal Size: 1-1/2 in
• Orifice Size: 1.56 in
• Port Type: Full
• Pressure: 600 psig
• Series: UPBA400S
• Softgoods Material: RPTFE
• Top to Inlet Center: 3 in
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Size: 1 1/2"
• Country Of Origin: US
• Construction: 2-Piece
• Brand: Milwaukee Valve
• UNSPSC: 40141607
