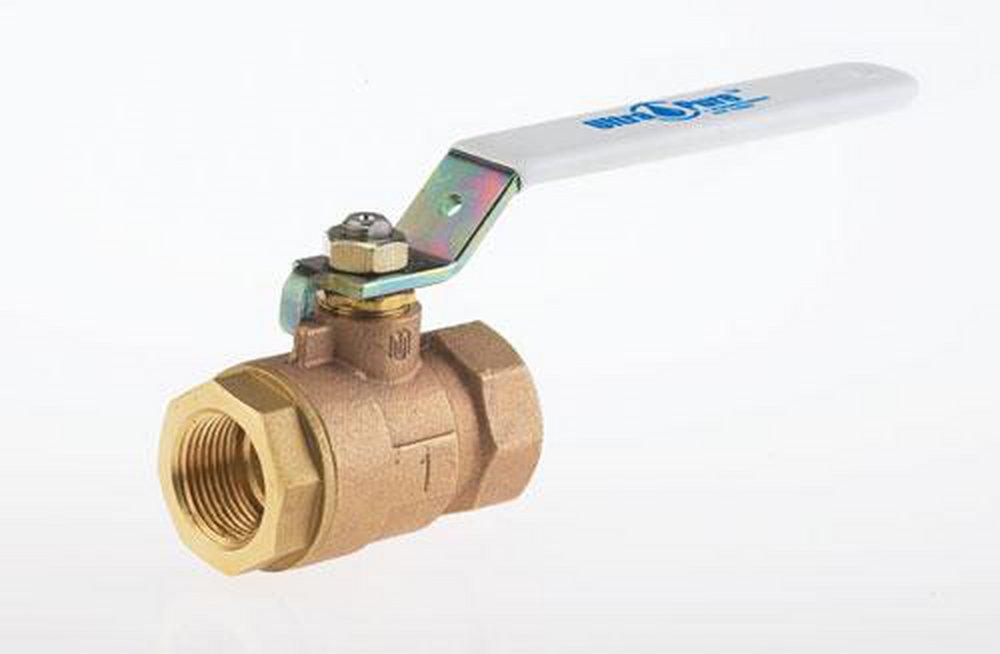

Milwaukee Valve UPBA-400S A 100 UPBA400S 1 in. Bronze Full Port Threaded 600# Ball Valve

Product Description

The MILWAUKEE VALVE UPBA-400S A 100 is a 1 in. bronze full port threaded 600# ball valve. It features a bubble-tight shutoff and quarter-turn operation. Designed as a low-lead valve for potable water, it also features a blow-out proof stem and a zinc-plated steel handle.

• Bubble-Tight Shutoff
• Quarter Turn Operation
• Low lead valve for potable water

Product Highlights

This bronze ball valve offers reliable shutoff and smooth operation for various plumbing applications.

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Manufacturer Part Number: UPBA-400S A 100
• Country of Origin: Domestic

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Cast Bronze
• End Style: FNPT
• Port Type: Full
• Pressure Rating: 600 psig
• Series: UPBA400S
• Softgoods Material: RPTFE
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Type: 2-Piece
• Domestic/Import: Domestic
• Inlet to Outlet Length: 3.32 in
• Nominal Size: 1 in
• Orifice Size: 1.06 in
• Top to Inlet Center: 2.68 in
