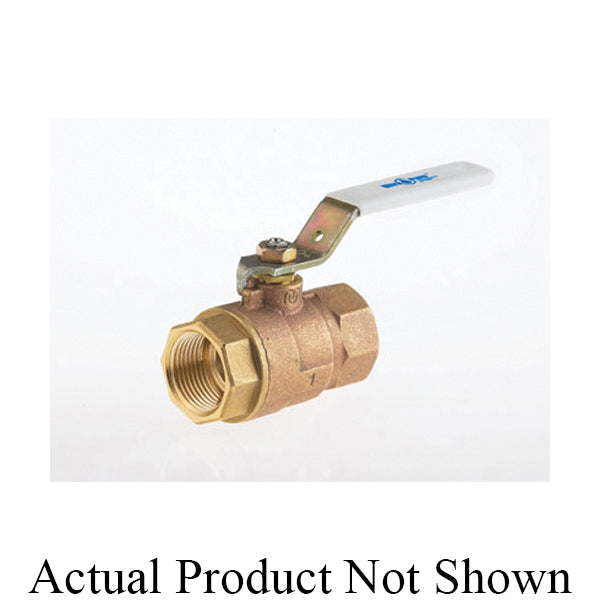

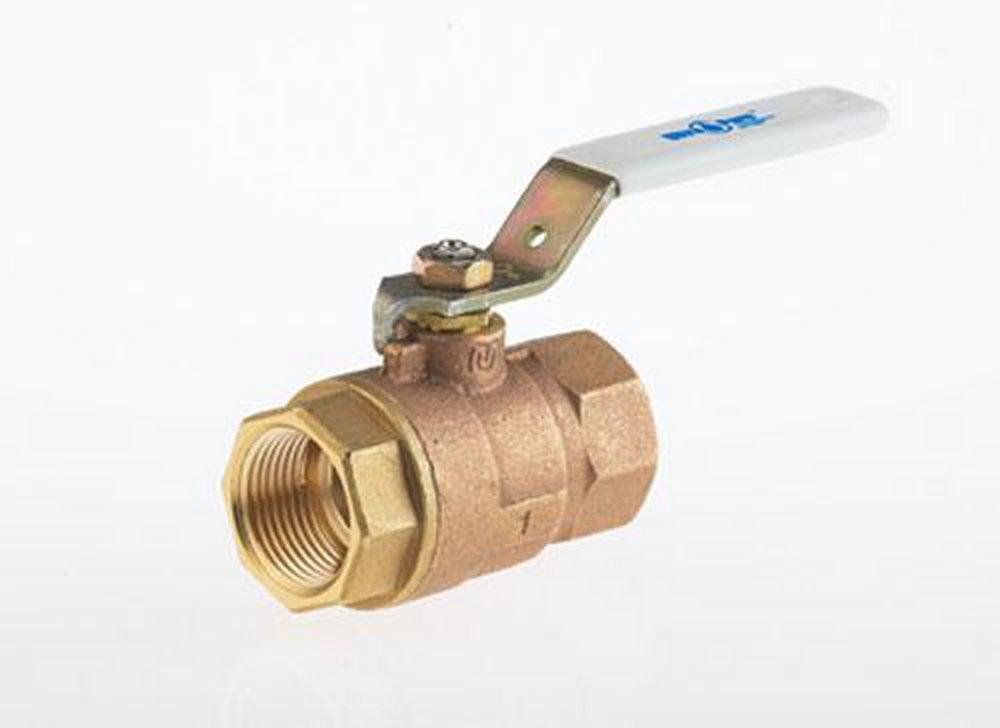

Milwaukee Valve UPBA-100A200 UPBA100 2 in Cast Bronze Standard Port Threaded Ball Valve

Product Description

Milwaukee Valve UPBA-100A200 is a two-piece ball valve designed for potable water applications. It features a cast bronze body and offers a standard port design. This valve operates under a pressure rating of six hundred psi and has a nominal size of two inches.

• Blow-out proof stem
• Quarter turn operation
• Compatible with lead-free systems

Product Highlights

The Milwaukee Valve UPBA-100A200 ensures a bubble-tight shutoff and easy operation, making it ideal for plumbing systems requiring reliable performance.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: UPBA-100 A 200

Technical Specifications

• Type: 2-Piece
• Body Material: Cast Bronze
• Nominal Size: 2 in
• Orifice Size: 1.56 in
• Inlet to Outlet Length: 4.3 in
• Top to Inlet Center: 3 in
• Pressure Rating: 600 psig
• Softgoods Material: RPTFE
• Standards/Approvals: ASTM B584-C89833 Body, ASTM B283-C27450 Ball, ASTM B21-C46400 Stem
