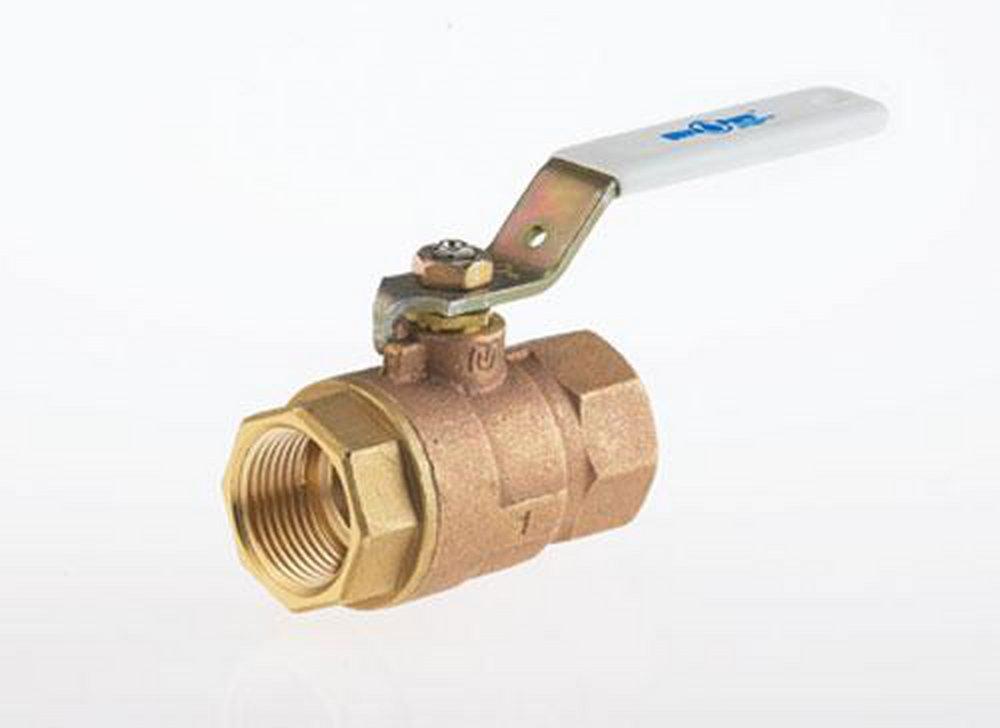

Milwaukee Valve UPBA-100A114 UPBA100 1-1/4 in Cast Bronze Standard Port Threaded 600# Ball Valve

Product Description

Milwaukee Valve offers the UPBA-100A114 ball valve, which is a two-piece unit made for controlling water flow in plumbing systems. This valve features a standard port design and is suitable for potable water applications. It is constructed from cast bronze and rated for pressure handling up to six hundred pounds per square inch. The product is designed for thread end connections, making installation straightforward for contractors.

• 606 WOG rating for reliable shutoff
• Durable cast bronze construction
• Compatible with various plumbing systems

Product Highlights

The Milwaukee Valve UPBA-100A114 is ideal for professionals seeking a robust and efficient valve solution in plumbing applications.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: UPBA-100A114

Technical Specifications

• Type: 2-Piece
• Body Material: Cast Bronze
• Nominal Size: 1-1/4 in
• Orifice Size: 1.06 in
• Pressure Rating: 600 psig
• End Style: Thread
• Inlet to Outlet Length: 3-1/2 in
• Top to Inlet Center: 2.66 in
