Milwaukee Valve UP1548T-100 Check Valve, 1 in Nominal, Solder End Style, Bronze Body

Product Description

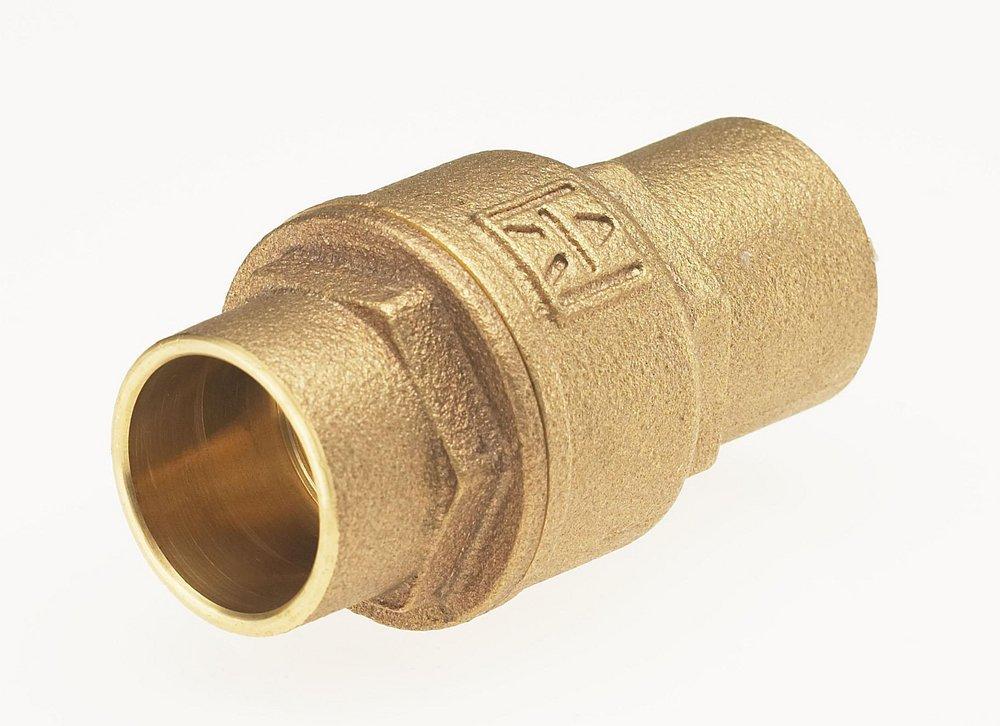

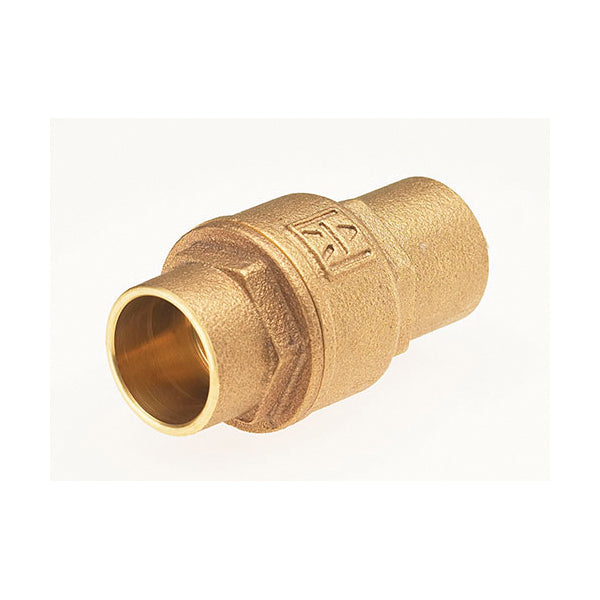

The Milwaukee Valve UP1548T-100 is a one-inch check valve with a lead-free, bronze body. Designed for potable water applications, this valve ensures reliable performance and low lead compliance. The valve features a solder end style that allows for easy installation in various settings.

• Rated for 250 psig WOG pressure
• Spring-loaded latch-lock handle actuator
• Dimensions are 1.91 inches height and 3.53 inches inlet to outlet length

Product Highlights

This check valve minimizes water hammer and prevents backflow effectively, making it suitable for HVAC and plumbing systems.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: UP1548T-100

Technical Specifications

• Nominal Size: 1 in
• Body Material: Bronze
• Actuator Type: Spring-Loaded Latch-Lock Handle
• End Style: Solder
• Pressure Rating: 250 psig WOG
• Dimensions: 1.91 in H
• Inlet to Outlet Length: 3.53 in
• Low Lead Compliance: Yes
• Standards/Approvals: ASTM B584 C89833, NSF/ANSI 372
