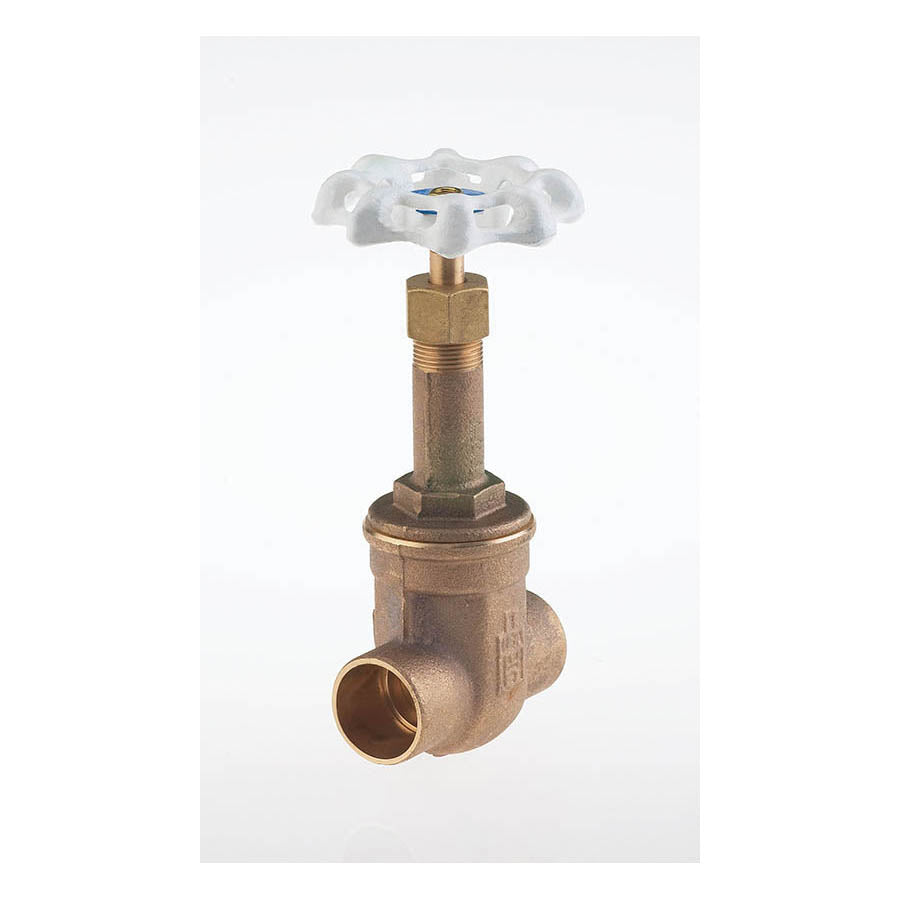

Milwaukee Valve UP149-100 Gate Valve, 1 in Nominal, Solder End Style, UP149-100

Product Description

The Milwaukee Valve UP149-100 is an Ultra Pure gate valve designed for reliable performance in plumbing and HVAC applications. This valve features a one-inch nominal size with a solder end style, ensuring secure and effective connections.

• Low lead valve suitable for potable water
• Pressure rating of three hundred psi WOG
• Handwheel actuator for easy operation

Product Highlights

This valve is designed to handle high-pressure water systems efficiently. The one-inch size and bronze construction make it ideal for various piping needs.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Part Number: UP149-100

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Hand Wheel Diameter: 2-3/4 in
• Inlet to Outlet Length: 3 in
• Nominal Size: 1 in
• Pressure Rating: 300 psi WOG
• Series: UP149
• Softgoods Material: Graphite Packing
• Temperature Rating: 180 deg F
• Top to Inlet Center: 7 in
• Trim Material: Bronze
