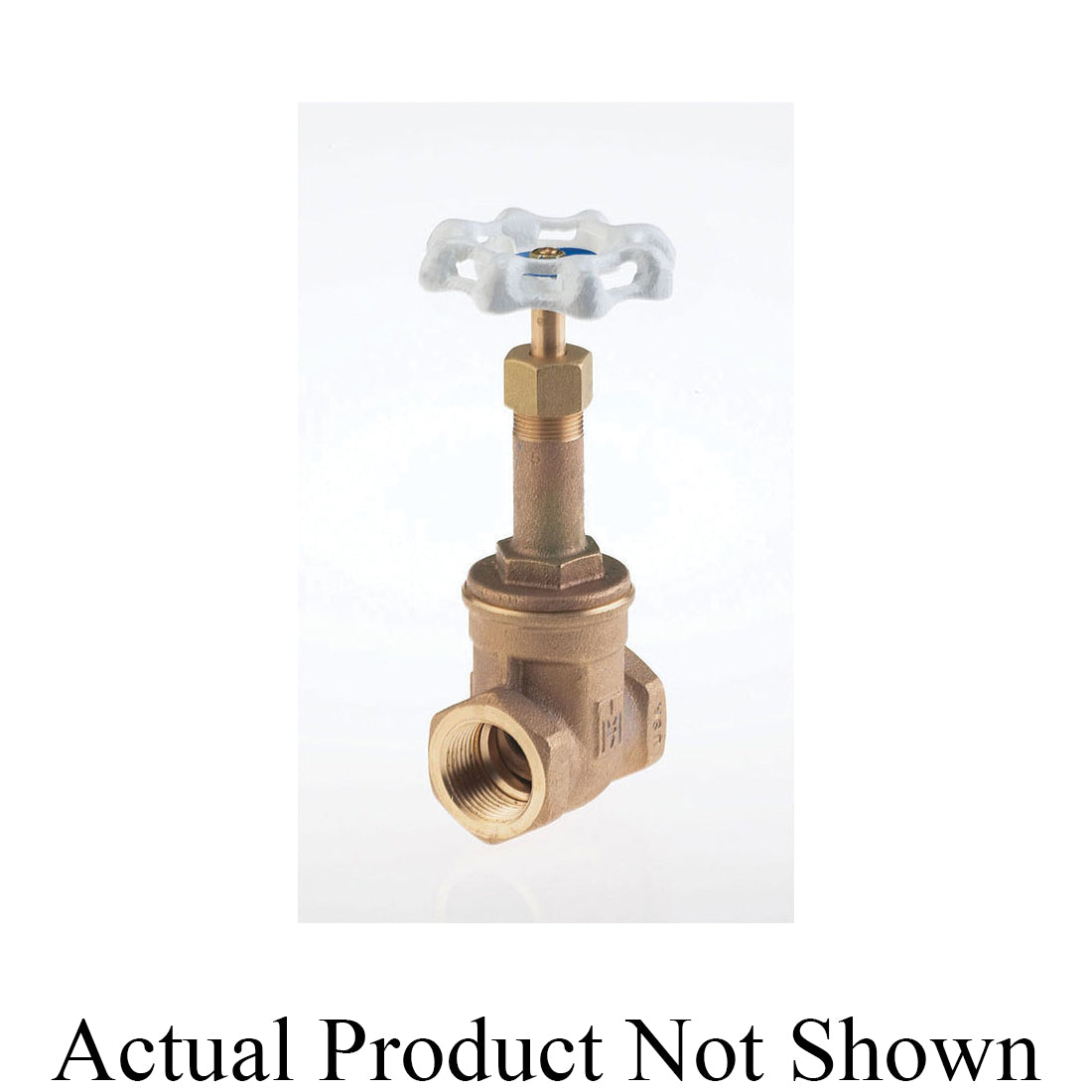

Milwaukee Valve UP148-114 Gate Valve 300 lb 1-1/4 in

Product Description

The Milwaukee Valve Ultra Pure UP148-114 Gate Valve features a nominal size of one and one-fourth inches with FNPT end style. This valve operates at a pressure of three hundred psi WOG, making it suitable for various applications in plumbing and HVAC systems. It is designed for domestic use and features a handwheel actuator for easy operation. Additionally, it has a bronze body with bronze trim and graphite packing softgoods, which contribute to its durability and reliability.

• Constructed from low lead bronze for potable water systems
• Max pressure rating of 300 psi for non-shock applications
• Includes a solid wedge disc and rising stem for efficient flow control

Product Highlights

This gate valve is ideal for both commercial and residential applications, providing a reliable solution for water flow control. The handwheel actuator allows for easy adjustment, while the low lead material meets health safety standards for drinking water.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: UP148-114

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Hand Wheel Diameter: 3.13 inches
• Inlet to Outlet Length: 2.78 inches
• Nominal Size: 1-1/4 inches
• Pressure Rating: 300 psi WOG
• Series: UP148
• Softgoods Material: Graphite Packing
• Temperature Rating: 180 degrees F
• Top to Inlet Center: 8.78 inches
• Trim Material: Bronze
