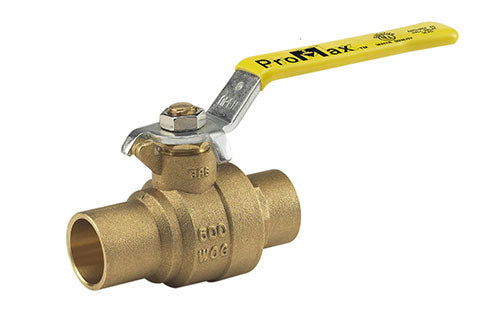

Milwaukee Valve PM11000112 ProMax Ball Valve, 1-1/2 inches, Solder, Forged Brass Body, Full Port

Product Description

The Milwaukee Valve ProMax™ PM11000112 ball valve features a 1-1/2" nominal size, solder end style, and is designed for 600 psi applications. It has a full port, 1-1/2" orifice, a chrome-plated brass ball, and a forged brass body with brass stem and PTFE ball seat trim.

• Blow-out proof stem
• Adjustable threaded gland follower
• Combination of buna O-Ring and TFE packing requires little or no maintenance

Product Highlights

Ideal for industrial applications, this ball valve ensures reliable performance with its robust construction and thoughtful design.

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Manufacturer Part Number: PM11000112
• Country of Origin: US

Technical Specifications

• Body Material: Forged Brass
• End Style: solder
• Nominal Size: 1-1/2 in
• Port Type: Full
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 4.64
• Manufacturer: Milwaukee Valve
• Manufacturer #: PM11000112
• Orifice Size: 1-1/2
• Pressure Rating: 600 psi
• Series: PM11
• Top to Inlet Center: 2.52
• Trim Material: Brass Stem and PTFE Ball Seat
• Diameter: 1 1/2 in
• Housing Material: Brass
• MPN: PM11000112
• Brand: ProMax
• UPC: 4005176999956
