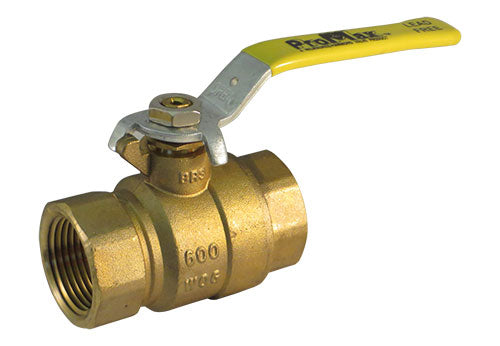

Milwaukee Valve PM01LF0200 ProMax™ 2-Piece Ball Valve 2 in Nominal

Product Description

The Milwaukee Valve PM01LF0200 ProMax™ ball valve is a 2-piece valve with a 2 in nominal size and thread end style. Rated to 600 psi, it features a full port and a forged brass body. The valve has a 2 in orifice and measures 4.38 in inlet to outlet length and 2.96 in top to inlet center. Designed for potable water applications.

• Blow-out proof stem
• Adjustable threaded gland follower
• Combination of buna O-Ring and TFE packing requires little or no maintenance

Product Highlights

This 2-piece ball valve is rated for vacuum service to 29 in Hg and complies with lead-free standards.

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Manufacturer Part Number: PM01LF0200

Technical Specifications

• Application: For Potable Water
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: Thread
• Inlet to Outlet Length: 4.38 in
• Manufacturer Part Number: PM01LF0200
• Nominal Size: 2 in
• Orifice Size: 2 in
• Pressure Rating: 600 psi
• Series: PM01LF
• Standards/Approvals: ASME A112.4.14|ASTM B283-C27450 Body|UNS C27450 Ball/Stem|D2006 O-Ring|Designed in accordance with the requirements of California AB 1953|Vermont S 152 and Senate Bill S3874|MSS SP-110|WQA Tested and Certified Against NSF/ANSI 372 for Lead-Free Compliance
• Top to Inlet Center: 2.96 in
• Trim Material: Brass Stem and PTFE Ball Seat
• Type: 2-Piece
• Connection Type: Threaded
• Port Type: Full
