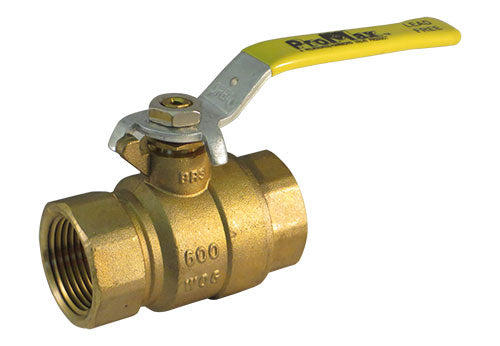

Milwaukee Valve PM01LF0114 ProMax 2-Piece Ball Valve 600 psi 1-1/4 in

Product Description

The Milwaukee Valve PM01LF0114 ProMax™ ball valve is a 2-piece valve with a 1-1/4 in nominal size and thread end style. Designed for potable water applications, this full port valve features a forged brass body and a brass stem with PTFE ball seat trim. It is rated to 600 psi and suitable for vacuum service to 29 in Hg.

• Blow-out proof stem
• Adjustable threaded gland follower
• Combination of buna O-Ring and TFE packing requires little or no maintenance

Product Highlights

This Milwaukee Valve ball valve is ideal for plumbing and water systems requiring a reliable shutoff with lead-free compliance.

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Manufacturer Part Number: PM01LF0114

Technical Specifications

• Application: For Potable Water
• Body Material: Forged Brass
• End Style: Thread
• Inlet to Outlet Length: 3-1/2 in
• Manufacturer Part Number: PM01LF0114
• Nominal Size: 1-1/4 in
• Orifice Size: 1.26 in
• Pressure Rating: 600 psi
• Series: PM01LF
• Standards/Approvals: ASME A112.4.14|ASTM B283-C27450 Body|UNS C27450 Ball/Stem|D2006 O-Ring|Designed in accordance with the requirements of California AB 1953|Vermont S 152 and Senate Bill S3874|MSS SP-110|WQA Tested and Certified Against NSF/ANSI 372 for Lead-Free Compliance
• Top to Inlet Center: 2.33 in
• Trim Material: Brass Stem and PTFE Ball Seat
• Type: 2-Piece
• Connection Type: Threaded
• Port Type: Full
