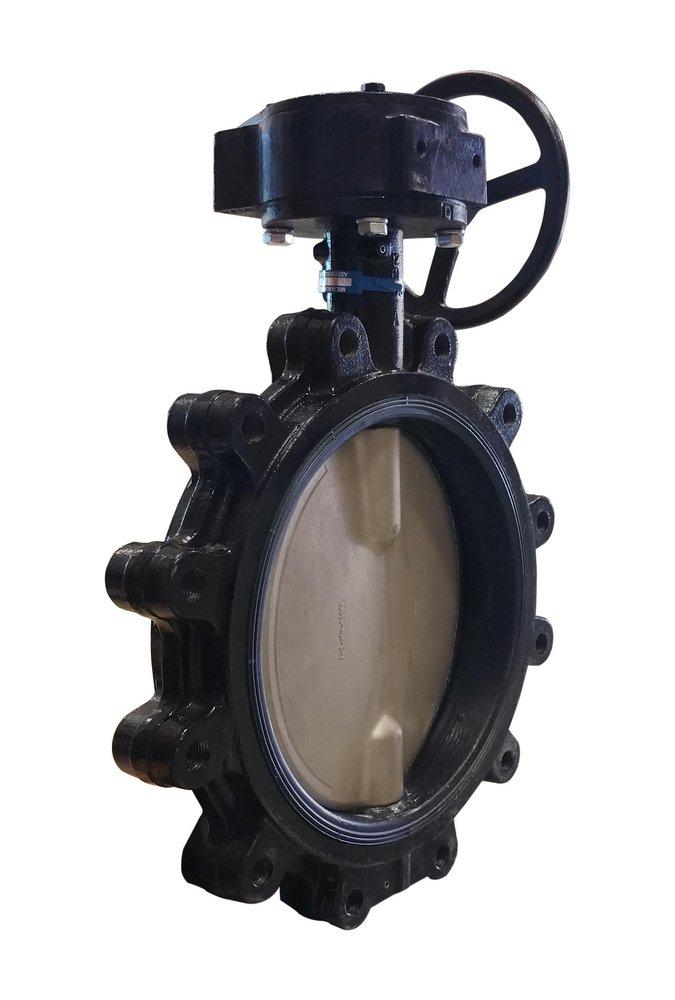

Milwaukee Valve ML323EDW ML Series 10 in Cast Iron EPDM Gear Operator Handle Butterfly Valve

Product Description

The Milwaukee Valve ML323EDW is a mold design butterfly valve built for reliability in various applications. This valve features a 10-inch nominal size, cast iron body and is equipped with a gear operator. The aluminum bronze disc enhances durability and provides effective sealing.

• 200 psig non-shock operation
• Approved for bi-directional dead end service
• Bubble-tight shut-off design

Product Highlights

This valve combines strength and durability with a heavy-duty design for demanding environments. It meets various standards and approvals, ensuring safety and reliability in operations.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Part Number: ML323EDW

Technical Specifications

• Actuator Type: Gear
• Body Material: Cast Iron
• Nominal Size: 10 in
• Disc Material: Aluminum Bronze
• Softgoods Material: EPDM
• Stem Pin Material: 416 Stainless Steel (Stem), Stainless Steel (Roll Pin)
• Dimensions: 21.67 in H
• Top to Inlet Center: 10.56 in
