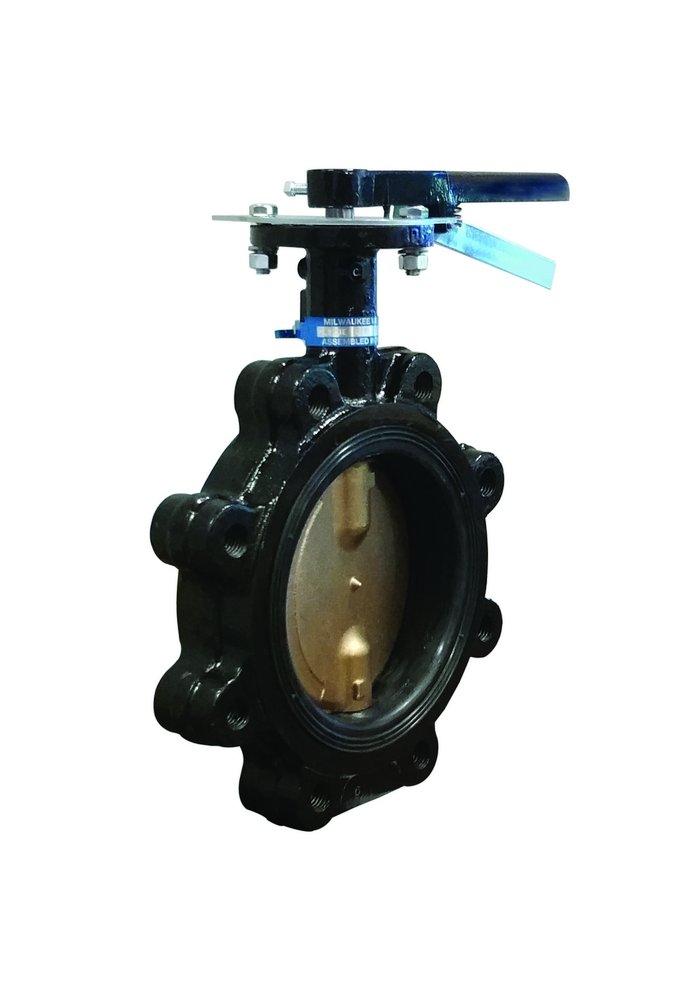

Milwaukee Valve ML223EDU ML Series 8 in Cast Iron EPDM Lever Operator Butterfly Valve

Product Description

Milwaukee Valve offers the ML223EDU, an eight-inch butterfly valve designed for handling various flow applications. This valve is part of the ML Series and features a cast iron body with an EPDM liner. The lever handle actuator ensures straightforward operation in demanding environments.

• Quarter turn operation for easy control.
• Bubble-tight shutoff ensures leak-free performance.
• Bi-directional capabilities to enhance installation versatility.

Product Highlights

This butterfly valve is constructed from durable materials, including aluminum bronze disc and stainless steel stem, ensuring reliability and compliance with industry standards.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: ML223EDU

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Nominal Size: 8 in
• Dimensions: 31.44 in H
• Series: ML Series
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel / Alloy Steel
• Top to Inlet Center: 9.38 in
• Standards: ASTM A126 Class B, API-609, MSS SP-67 Type 1
