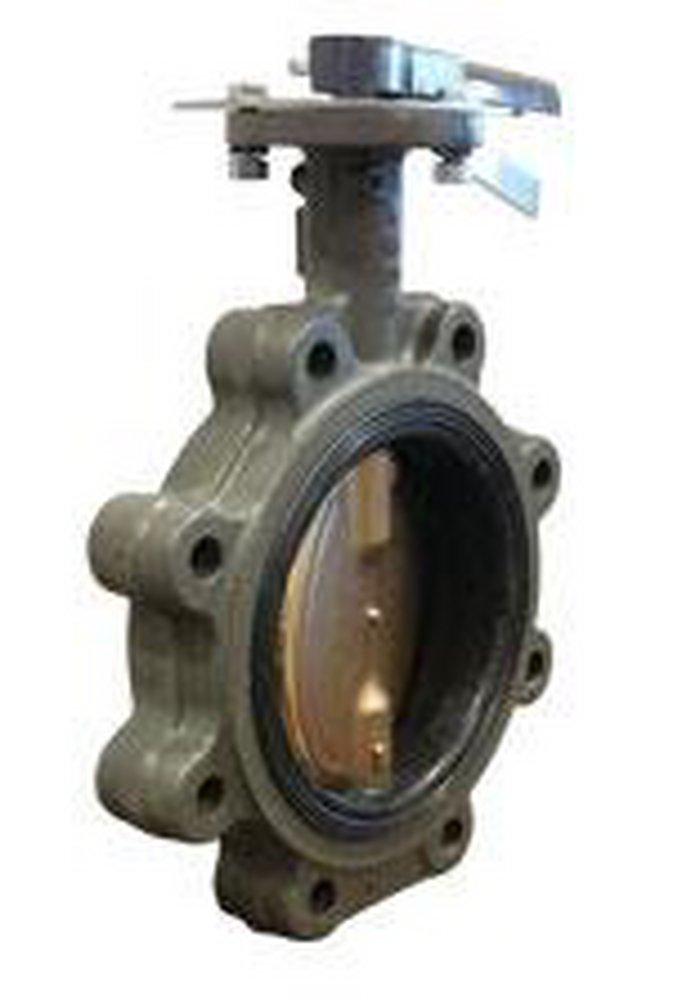

Milwaukee Valve CL223ED6 CL Series 6 in. Cast Iron EPDM Lever Handle Butterfly Valve

Product Description

Milwaukee Valve CL223ED6 is a six-inch cast iron butterfly valve with EPDM soft goods. This valve features a lever handle for easy operation and is ideal for use in water systems. The robust design ensures a reliable seal and operation, making it suitable for various applications.

• Cast Iron Body
• EPDM Softgoods
• Lever Handle Actuator

Product Highlights

This butterfly valve provides a bubble-tight shutoff with bi-directional service up to 200 psi. The design includes a low profile disc for minimal flow resistance and an extended neck for easier installation.

Product Information

Standard Information

• Brand: Milwaukee Valve
• MPN: CL223ED6

Technical Specifications

• Material: Cast Iron
• Nominal Size: 6 in
• Dimensions: 14.69 in H
• Type: Lug Style
• Actuator Type: Lever Handle
• Domestic/Import: Import
• Softgoods Material: EPDM
• Disc Material: Aluminum Bronze
• Stem & Pin Material: 416 Stainless Steel (Stem)/ Stainless Steel (Roll Pin)
• Top to Inlet Center: 8 in
