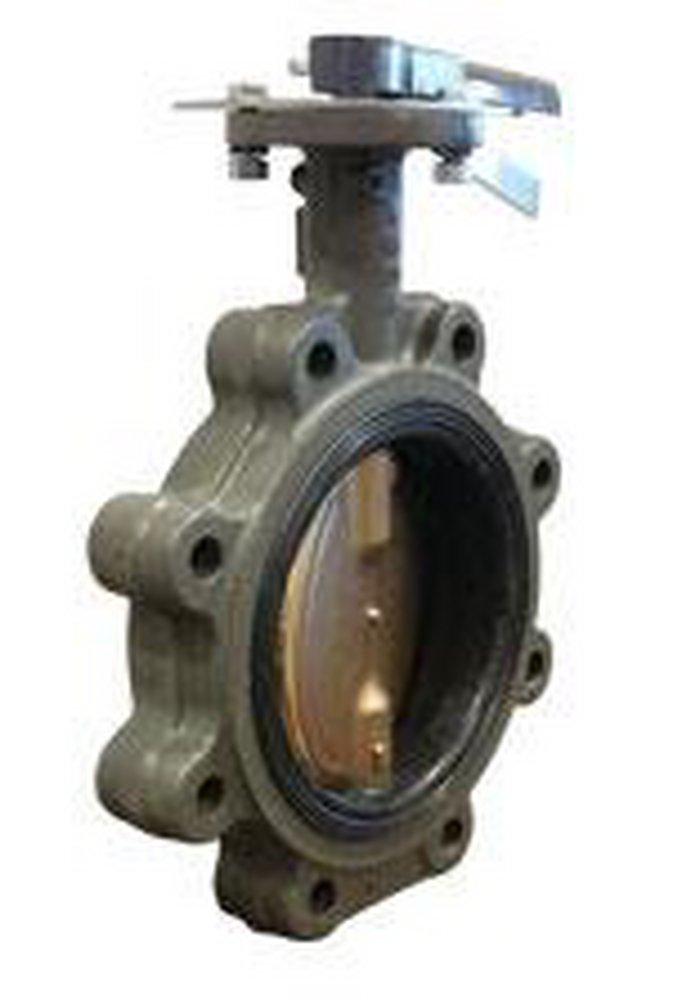

Milwaukee Valve CL223ED2 CL Series 2 in Cast Iron EPDM Lever Handle Butterfly Valve

Product Description

The Milwaukee Valve CL223ED2 is a two-inch cast iron butterfly valve designed for potable water applications. This lever handle actuator model features a durable aluminum bronze disc and an EPDM liner for reliable performance. The valve is engineered to ensure bubble-tight shut-off, making it suitable for high-pressure environments.

• Durable cast iron body
• Locking lever handle for secure operation
• Bi-directional dead-end service capability

Product Highlights

This valve is designed for heavy-duty applications with a vacuum rating up to twenty-nine inches of mercury. It can withstand a maximum pressure of two hundred psi. Its robust construction and design enable it to handle a variety of installation scenarios.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: CL223E D 2

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Dimensions: 19.19 inches H
• Domestic/Import: Import
• Nominal Size: 2 inches
• Series: CL Series
• Softgoods Material: EPDM
• Stem and Pin Material: 416 Stainless Steel (Stem)/ Stainless Steel (Roll Pin)
• Top to Inlet Center: 5-1/2 inches
• Standards/Approvals: ASTM A126 Class B Body, API-609, MSS SP-67 Type 1, NSF/ANSI 372 for Lead-Free Compliance
